STANDARD 3-ROLL OFFSET FRAMES
SERIES 25 | 3-ROLL OFFSET | 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3ROFF-25x400x127-DEG
400
170
634
203
0
466
426
390
3ROFF-25x450x127-DEG
450
190
686
203
0
523
479
438
3ROFF-25x500x127-DEG
500
200
736
203
0
552
505
462
3ROFF-25x600x127-DEG
600
240
838
203
0
667
611
558
3ROFF-25x750x127-DEG
750
290
990
203
0
811
743
679
3ROFF-25x900x127-DEG
900
340
1144
203
0
955
875
800
3ROFF-25x1050x127-DEG
1050
390
1296
203
100
1099
1007
921
3ROFF-25x1200x127-DEG
1200
450
1448
203
100
1272
1165
1065
3ROFF-25x1350x127-DEG
1350
500
1600
203
240
1416
1297
1186
3ROFF-25x1500x127-DEG
1500
560
1752
203
240
1589
1455
1331
3ROFF-25x1650x127-DEG
1650
610
1904
203
240
1733
1587
1452
3ROFF-25x1800x127-DEG
1800
660
2058
203
240
1877
1719
1572
3ROFF-25x2000x127-DEG
2000
740
2260
203
310
2107
1930
1766
3ROFF-25x2100x127-DEG
2100
765
2362
203
310
2179
1996
1826
3ROFF-25x2200x127-DEG
2200
800
2430
203
310
2280
2088
1910
3ROFF-25x2400x127-DEG
2400
870
2668
203
310
2481
2273
2079
SERIES 30 | 3-ROLL OFFSET | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3ROFF-30x750x152-DEG
750
290
990
265
240
811
743
679
3ROFF-30x900x152-DEG
900
340
1144
265
240
955
875
800
3ROFF-30x1050x152-DEG
1050
390
1296
265
240
1099
1007
921
3ROFF-30x1200x152-DEG
1200
450
1448
265
240
1272
1165
1065
3ROFF-30x1350x152-DEG
1350
500
1600
265
240
1416
1297
1186
3ROFF-30x1500x152-DEG
1500
560
1752
265
240
1589
1455
1331
3ROFF-30x1650x152-DEG
1650
610
1904
265
310
1733
1587
1452
3ROFF-30x1800x152-DEG
1800
660
2058
265
310
1877
1719
1572
3ROFF-30x2000x152-DEG
2000
740
2260
265
310
2107
1930
1766
3ROFF-30x2100x152-DEG
2100
765
2362
265
310
2179
1996
1826
3ROFF-30x2200x152-DEG
2200
800
2430
265
310
2280
2088
1910
3ROFF-30x2400x152-DEG
2400
870
2668
265
310
2481
2273
2079
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES

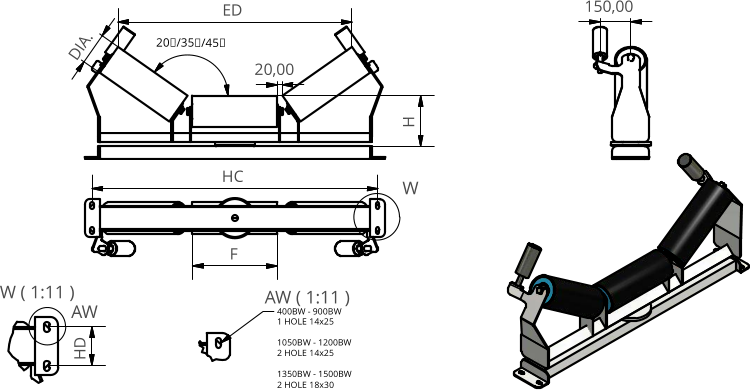

STANDARD TRACKING OFFSET FRAME
SERIES 25 | 3-ROLL TRACKING ANGULAR | 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RTOFF-25x400x127-DEG
400
170
634
203
0
466
426
390
3RTOFF-25x450x127-DEG
450
190
686
203
0
523
479
438
3RTOFF-25x500x127-DEG
500
200
736
203
0
552
505
462
3RTOFF-25x600x127-DEG
600
240
838
203
0
667
611
558
3RTOFF-25x750x127-DEG
750
290
990
203
0
811
743
679
3RTOFF-25x900x127-DEG
900
340
1144
203
0
955
875
800
3RTOFF-25x1050x127-DEG
1050
390
1296
203
100
1099
1007
921
3RTOFF-25x1200x127-DEG
1200
450
1448
203
100
1272
1165
1065
3RTOFF-25x1350x127-DEG
1350
500
1600
203
240
1416
1297
1186
3RTOFF-25x1500x127-DEG
1500
560
1752
203
240
1589
1455
1331
3RTOFF-25x1650x127-DEG
1650
610
1904
203
240
1733
1587
1452
3RTOFF-25x1800x127-DEG
1800
660
2058
203
240
1877
1719
1572
3RTOFF-25x2000x127-DEG
2000
740
2260
203
310
2107
1930
1766
3RTOFF-25x2100x127-DEG
2100
765
2362
203
310
2179
1996
1826
3RTOFF-25x2200x127-DEG
2200
800
2464
203
310
2280
2088
1910
3RTOFF-25x2400x127-DEG
2400
870
2668
203
310
2481
2273
2079
SERIES 30 | 3-ROLL TRACKING ANGULAR | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RINL-30x750x152-DEG
750
290
990
265
240
811
743
679
3RINL-30x900x152-DEG
900
340
1144
265
240
955
875
800
3RINL-30x1050x152-DEG
1050
390
1296
265
240
1099
1007
921
3RINL-30x1200x152-DEG
1200
450
1448
265
240
1272
1165
1065
3RINL-30x1350x152-DEG
1350
500
1600
265
240
1416
1297
1186
3RINL-30x1500x152-DEG
1500
560
1752
265
240
1589
1455
1331
3RINL-30x1650x152-DEG
1650
610
1904
265
310
1733
1587
1452
3RINL-30x1800x152-DEG
1800
660
2058
265
310
1877
1719
1572
3RINL-30x2000x152-DEG
2000
740
2260
265
310
2107
1930
1766
3RINL-30x2100x152-DEG
2100
765
2362
265
310
2179
1996
1826
3RINL-30x2200x152-DEG
2200
800
2430
265
310
2280
2088
1910
3RINL-30x2400x152-DEG
2400
870
2668
265
310
2481
2273
2079
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD INLINE TROUGHING FRAME
SERIES 25 |
3-ROLL INLINE FRAME |
127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RINL-25x400x127-DEG
400
170
634
203
0
529
488
450
3RINL-25x450x127-DEG
450
190
686
203
0
587
541
498
3RINL-25x500x127-DEG
500
200
736
203
0
615
567
522
3RINL-25x600x127-DEG
600
240
838
203
0
731
673
619
3RINL-25x750x127-DEG
750
290
990
203
0
875
805
740
3RINL-25x900x127-DEG
900
340
1144
203
0
1018
937
860
3RINL-25x1050x127-DEG
1050
390
1296
203
100
1162
1068
981
3RINL-25x1200x127-DEG
1200
450
1448
203
100
1335
1227
1126
3RINL-25x1350x127-DEG
1350
500
1600
203
240
1479
1359
1247
3RINL-25x1500x127-DEG
1500
560
1752
203
240
1652
1517
1391
3RINL-25x1650x127-DEG
1650
610
1904
203
240
1796
1649
1512
3RINL-25x1800x127-DEG
1800
660
2058
203
240
1940
1781
1633
3RINL-25x2000x127-DEG
2000
740
2260
203
310
2170
1992
1826
3RINL-25x2100x127-DEG
2100
765
2362
203
310
2242
2058
1886
3RINL-25x2200x127-DEG
2200
800
2464
203
310
2343
2150
1971
3RINL-25x2400x127-DEG
2400
870
2668
203
310
2545
2335
2140
SERIES 30 |
3-ROLL INLINE FRAME |
152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RINL-30x750x152-DEG
750
290
990
265
240
875
805
740
3RINL-30x900x152-DEG
900
340
1144
265
240
1018
937
860
3RINL-30x1050x152-DEG
1050
390
1296
265
240
1162
1068
981
3RINL-30x1200x152-DEG
1200
450
1448
265
240
1335
1227
1126
3RINL-30x1350x152-DEG
1350
500
1600
265
240
1479
1359
1247
3RINL-30x1500x152-DEG
1500
560
1752
265
240
1652
1517
1391
3RINL-30x1650x152-DEG
1650
610
1904
265
310
1796
1649
1512
3RINL-30x1800x152-DEG
1800
660
2058
265
310
1940
1781
1633
3RINL-30x2000x152-DEG
2000
740
2260
265
310
2170
1992
1826
3RINL-30x2100x152-DEG
2100
765
2362
265
310
2242
2058
1886
3RINL-30x2200x152-DEG
2200
800
2430
265
310
2343
2150
1971
3RINL-30x2400x152-DEG
2400
870
2668
265
310
2545
2335
2140
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
SERIES 25 | 3-ROLL INLINE SELF ALIGNING | 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RSAINL-25x400x127-DEG
400
170
634
203
0
529
488
450
3RSAINL-25x450x127-DEG
450
190
686
203
0
587
541
498
3RSAINL-25x500x127-DEG
500
200
736
203
0
615
567
522
3RSAINL-25x600x127-DEG
600
240
838
203
0
731
673
619
3RSAINL-25x750x127-DEG
750
290
990
203
0
875
805
740
3RSAINL-25x900x127-DEG
900
340
1144
203
0
1018
937
860
3RSAINL-25x1050x127-DEG
1050
390
1296
203
100
1162
1068
981
3RSAINL-25x1200x127-DEG
1200
450
1448
203
100
1335
1227
1126
3RSAINL-25x1350x127-DEG
1350
500
1600
203
240
1479
1359
1247
3RSAINL-25x1500x127-DEG
1500
560
1752
203
240
1652
1517
1391
3RSAINL-25x1650x127-DEG
1650
610
1904
203
240
1796
1649
1512
3RSAINL-25x1800x127-DEG
1800
660
2058
203
240
1940
1781
1633
3RSAINL-25x2000x127-DEG
2000
740
2260
203
310
2170
1992
1826
3RSAINL-25x2100x127-DEG
2100
765
2362
203
310
2242
2058
1886
3RSAINL-25x2200x127-DEG
2200
800
2464
203
310
2343
2150
1971
3RSAINL-25x2400x127-DEG
2400
870
2668
203
310
2545
2335
2140
SEIRES 30 | 3-ROLL INLINE SELF ALIGNING | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RSAINL-30x750x152-DEG
750
290
990
265
240
875
805
740
3RSAINL-30x900x152-DEG
900
340
1144
265
240
1018
937
860
3RSAINL-30x1050x152-DEG
1050
390
1296
265
240
1162
1068
981
3RSAINL-30x1200x152-DEG
1200
450
1448
265
240
1335
1227
1126
3RSAINL-30x1350x152-DEG
1350
500
1600
265
240
1479
1359
1247
3RSAINL-30x1500x152-DEG
1500
560
1752
265
240
1652
1517
1391
3RSAINL-30x1650x152-DEG
1650
610
1904
265
310
1796
1649
1512
3RSAINL-30x1800x152-DEG
1800
660
2058
265
310
1940
1781
1633
3RSAINL-30x2000x152-DEG
2000
740
2260
265
310
2170
1992
1826
3RSAINL-30x2100x152-DEG
2100
765
2362
265
310
2242
2058
1886
3RSAINL-30x2200x152-DEG
2200
800
2430
265
310
2343
2150
1971
3RSAINL-30x2400x152-DEG
2400
870
2668
265
310
2545
2335
2140
STANDARD IN-LINE SELF-ALIGNING FRAME
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD OFFSET PICKING FRAME
SERIES 25 | 3-ROLL OFFSET PICKING FRAME | 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED
3RPICKOFF-25x750x127
750
586
990
203
150
897
3RPICKOFF-25x900x127
900
688
1144
203
150
999
3RPICKOFF-25x1050x127
1050
840
1296
203
150
1151
3RPICKOFF-25x1200x127
1200
994
1448
203
150
1305
3RPICKOFF-25x1350x127
1350
1146
1600
203
240
1457
3RPICKOFF-25x1500x127
1500
1298
1752
203
240
1609
3RPICKOFF-25x1650x127
1650
1450
1908
203
240
1761
3RPICKOFF-25x1800x127
1800
1602
2058
203
240
1913
3RPICKOFF-25x2000x127
2000
1754
2260
203
310
2065
3RPICKOFF-25x2100x127
2100
1908
2362
203
310
2219
3RPICKOFF-25x2200x127
2200
2110
2430
203
310
2421
3RPICKOFF-25x2400x127
2400
2212
2668
203
310
2523
SERIES 30 | 3-ROLL OFFSET PICKING FRAME | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED
5RTOFF-30x750x152-DEG
750
568
990
265
240
897
5RTOFF-30x900x152-DEG
900
688
1144
265
240
999
5RTOFF-30x1050x152-DEG
1050
560
1296
265
240
1151
5RTOFF-30x1200x152-DEG
1200
635
1448
265
240
1305
5RTOFF-30x1350x152-DEG
1350
720
1600
265
240
1457
5RTOFF-30x1500x152-DEG
1500
800
1752
265
310
1609
5RTOFF-30x1650x152-DEG
1650
885
1904
265
310
1761
5RTOFF-30x1800x152-DEG
1800
965
2058
265
310
1913
5RTOFF-30x2000x152-DEG
2000
1075
2260
265
310
2065
5RTOFF-30x2100x152-DEG
2100
1146
2362
265
310
2219
5RTOFF-30x2200x152-DEG
2200
1185
2430
265
310
2421
5RTOFF-30x2400x152-DEG
2400
1298
2668
265
310
2523
**SERIES 30 FRAMES 18x30mm HOLES

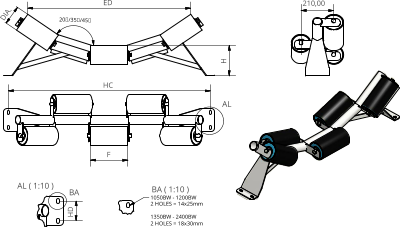

STANDARD 5-ROLL TUBULAR OFFSET FRAME
SERIES 25 | 5-ROLL TUBULAR OFFSET
| 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 D
ED 35 D
ED 45 DE
5RTOFF-25x1050x127-DEG
1050
240
1296
203
100
1124
1051
983
5RTOFF-25x1200x127-DEG
1200
270
1448
203
100
1269
1187
1111
5RTOFF-25x1350x127-DEG
1350
300
1600
203
240
1415
1324
1239
5RTOFF-25x1500x127-DEG
1500
340
1752
203
240
1609
1506
1409
5RTOFF-25x1650x127-DEG
1650
370
1904
203
240
1754
1642
1537
5RTOFF-25x1800x127-DEG
1800
400
2058
203
240
1900
1778
1665
5RTOFF-25x2000x127-DEG
2000
450
2260
203
310
2142
2006
1878
5RTOFF-25x2100x127-DEG
2100
475
2362
203
310
2263
2119
1985
5RTOFF-25x2200x127-DEG
2200
490
2464
203
310
2336
2188
2049
5RTOFF-25x2400x127-DEG
2400
536
2668
203
310
2559
2397
2245
SERIES 30 | 5-ROLL TUBULAR OFFSET
| 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 D
ED 35 D
ED 45 DE
5RTOFF-30x1050x152-DEG
1050
560
1296
265
240
1124
1051
983
5RTOFF-30x1200x152-DEG
1200
635
1448
265
240
1269
1187
1111
5RTOFF-30x1350x152-DEG
1350
720
1600
265
240
1415
1324
1239
5RTOFF-30x1500x152-DEG
1500
800
1752
285
240
1608
1506
1409
5RTOFF-30x1650x152-DEG
1650
885
1904
285
310
1754
1642
1537
5RTOFF-30x1800x152-DEG
1800
965
2058
285
310
1900
1778
1665
5RTOFF-30x2000x152-DEG
2000
1075
2260
285
310
2142
2006
1878
5RTOFF-30x2100x152-DEG
2100
1146
2362
285
310
2263
2119
1985
5RTOFF-30x2200x152-DEG
2200
1185
2430
285
310
2336
2188
2049
5RTOFF-30x2400x152-DEG
2400
1298
2668
285
310
2559
2397
2245
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES

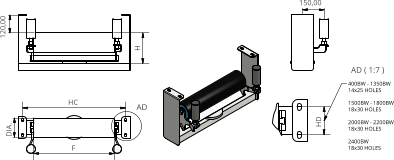

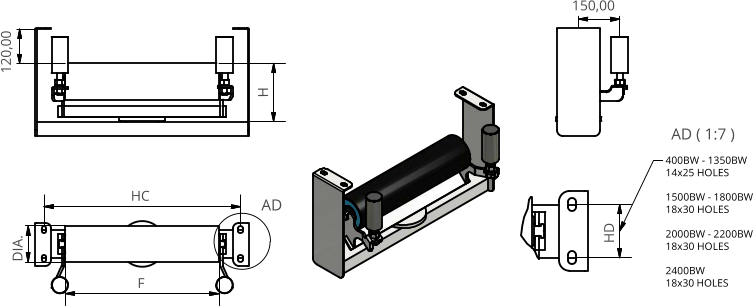

STANDARD TR
ACK
ING RETURN FR
AME
SERIES 25 |
1-ROLL TRACKING RETURN |
127 DIA.
PART NUMBER
BW
F
HC
H
HD
1RTR-25x400x127
400
484
634
203
100
1RTR-25x450x127
450
536
686
203
100
1RTR-25x500x127
500
586
736
203
100
1RTR-25x600x127
600
688
838
203
100
1RTR-25x750x127
750
840
990
203
100
1RTR-25x900x127
900
994
1144
203
100
1RTR-25x1050x127
1050
1146
1296
203
100
1RTR-25x1200x127
1200
1298
1448
203
100
1RTR-25x1350x127
1350
1450
1600
203
100
1RTR-25x1500x127
1500
1602
1752
203
100
1RTR-25x1650x127
1650
1754
1904
203
100
1RTR-25x1800x127
1800
1908
2058
203
100
1RTR-25x2000x127
2000
2110
2260
203
150
1RTR-25x2100x127
2100
2212
2362
203
150
1RTR-25x2200x127
2200
2310
2464
203
150
1RTR-25x2400x127
2400
2518
2668
203
240
SERIES 30 | 1-ROLL TRACKING RETURN
|
152DIA.
PART NUMBER
BW
R
HC
HD
1RTR-30x750x152
750
840
990
100
1RTR-30x900x152
900
994
1144
100
1RTR-30x1050x152
1050
1146
1296
100
1RTR-30x1200x152
1200
1298
1448
100
1RTR-30x1350x152
1350
1450
1600
100
1RTR-30x1500x152
1500
1602
1752
150
1RTR-30x1650x152
1650
1754
1904
150
1RTR-30x1800x152
1800
1908
2058
150
1RTR-30x2000x152
2000
2110
2260
240
1RTR-30x2100x152
2100
2212
2362
240
1RTR-30x2200x152
2200
2310
2430
240
1RTR-30x2400x152
2400
2518
2668
240

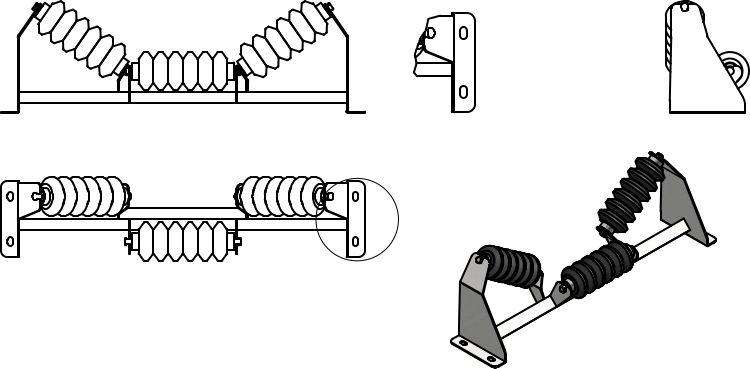

STANDARD IMPACT O
FFSET FRAMES
V ( 1 : 10
)
V
HC
F
1
50,00
40
0BW -
240
0BW
2 HO
LE
S = 1
8x
30mm
DI
A.
ED
SERIES 25 | 3-ROLL IMP OFFSET
| 133 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RIMPOFF-25x400x133-DEG
400
170
634
206
150
500
465
392
3RIMPOFF-25x450x133-DEG
450
190
686
206
150
527
481
439
3RIMPOFF-25x500x133-DEG
500
200
736
206
150
556
508
463
3RIMPOFF-25x600x133-DEG
600
240
838
206
150
671
613
560
3RIMPOFF-25x750x133-DEG
750
290
990
206
150
815
745
680
3RIMPOFF-25x900x133-DEG
900
340
1144
206
150
959
877
801
3RIMPOFF-25x1050x133-DEG
1050
390
1296
206
150
1103
1009
922
3RIMPOFF-25x1200x133-DEG
1200
450
1448
206
150
1276
1167
1067
3RIMPOFF-25x1350x133-DEG
1350
500
1600
206
240
1420
1299
1187
3RIMPOFF-25x1500x133-DEG
1500
560
1752
206
240
1593
1458
1332
3RIMPOFF-25x1650x133-DEG
1650
610
1904
206
240
1736
1590
1453
3RIMPOFF-25x1800x133-DEG
1800
660
2058
206
240
1880
1722
1574
SERIES 30 | 3-ROLL IMP OFFSET |
152DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RIMPOFF-30x750x152-DEG
750
290
990
265
240
815
745
680
3RIMPOFF-30x900x152-DEG
900
340
1144
265
240
959
877
801
3RIMPOFF-30x1050x152-DEG
1050
390
1296
265
240
1103
1009
922
3RIMPOFF-30x1200x152-DEG
1200
450
1448
265
240
1276
1167
1067
3RIMPOFF-30x1350x152-DEG
1350
500
1600
265
240
1420
1299
1187
3RIMPOFF-30x1500x152-DEG
1500
560
1752
285
240
1593
1458
1332
3RIMPOFF-30x1650x152-DEG
1650
610
1904
285
310
1736
1590
1453
3RIMPOFF-30x1800x152-DEG
1800
660
2058
285
310
1880
1722
1574
3RIMPOFF-30x2000x152-DEG
2000
740
2260
285
310
2111
1933
1767
3RIMPOFF-30x2100x152-DEG
2100
765
2362
285
310
2183
1999
1827
3RIMPOFF-30x2200x152-DEG
2200
800
2430
285
310
2284
2091
1912
3RIMPOFF-30x2400x152-DEG
2400
870
2668
285
310
2485
2276
2081
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.

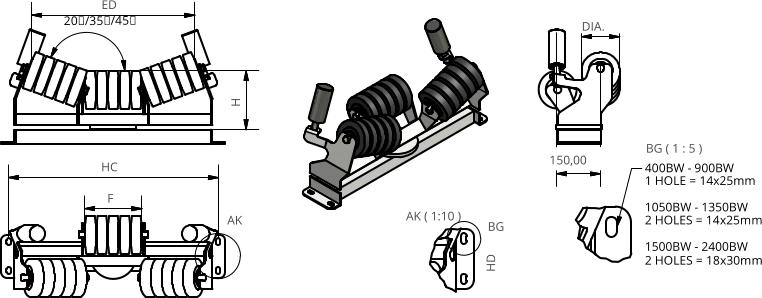

TRAC
KIN
G IM
PACT
OFFSET F
RAME
S
ST
AN
DA
R
D 5-R
O
LL
TUBULAR I
MPA
CT
OF
FSE
T
FR
AM
E
SERIES 25 | 5-ROLL TUBULAR IMPACT FRAME | 133 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
5RTIMPOFF-25x1050x133-DEG
1050
240
1296
206
150
1124
1051
983
5RTIMPOFF-25x1200x133-DEG
1200
270
1448
206
150
1269
1187
1111
5RTIMPOFF-25x1350x133-DEG
1350
300
1600
206
240
1415
1324
1239
5RTIMPOFF-25x1500x133-DEG
1500
340
1752
206
240
1609
1506
1409
5RTIMPOFF-25x1650x133-DEG
1650
370
1904
206
240
1754
1642
1537
5RTIMPOFF-25x1800x133-DEG
1800
400
2058
206
240
1900
1778
1665
SERIES 30 | 5-ROLL TUBULAR IMPACT OFFSET | 152DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DE
ED 35 DEG
ED 45 DEG
5RTIMPOFF-30x1050x152-DEG
1050
560
1296
265
240
1124
1051
983
5RTIMPOFF-30x1200x152-DEG
1200
635
1448
265
240
1269
1187
1111
5RTIMPOFF-30x1350x152-DEG
1350
720
1600
265
240
1415
1324
1239
5RTIMPOFF-30x1500x152-DEG
1500
800
1752
285
240
1609
1506
1409
5RTIMPOFF-30x1650x152-DEG
1650
885
1904
285
310
1754
1642
1537
5RTIMPOFF-30x1800x152-DEG
1800
965
2058
285
310
1900
1778
1665
5RTIMPOFF-30x2000x152-DEG
2000
1075
2260
285
310
2142
2006
1878
5RTIMPOFF-30x2100x152-DEG
2100
1146
2362
285
310
2263
2119
1985
5RTIMPOFF-30x2200x152-DEG
2200
1185
2430
285
310
2336
2188
2049
5RTIMPOFF-30x2400x152-DEG
2400
1298
2668
285
310
2559
2397
2245
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
SERIES 25 | 3-ROLL TRACKING OFFSET FRAME | 133 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RTIMPOFF-25x400x133-DEG
400
170
634
206
0
500
465
392
3RTIMPOFF-25x450x133-DEG
450
190
686
206
0
527
481
439
3RTIMPOFF-25x500x133-DEG
500
200
736
206
0
556
508
463
3RTIMPOFF-25x600x133-DEG
600
240
838
206
0
671
613
560
3RTIMPOFF-25x750x133-DEG
750
290
990
206
0
815
745
680
3RTIMPOFF-25x900x133-DEG
900
340
1144
206
0
959
877
801
3RTIMPOFF-25x1050x133-DEG
1050
390
1296
206
100
1103
1009
922
3RTIMPOFF-25x1200x133-DEG
1200
450
1448
206
100
1276
1167
1067
3RTIMPOFF-25x1350x133-DEG
1350
500
1600
206
100
1420
1299
1187
3RTIMPOFF-25x1500x133-DEG
1500
560
1752
206
240
1593
1458
1332
3RTIMPOFF-25x1650x133-DEG
1650
610
1904
206
240
1736
1590
1453
3RTIMPOFF-25x1800x133-DEG
1800
660
2058
206
240
1880
1722
1574
3RTIMPOFF-25x2000x133-DEG
2000
740
2260
206
310
2111
1933
1767
3RTIMPOFF-25x2100x133-DEG
2100
765
2362
206
310
2183
1999
1827
3RTIMPOFF-25x2200x133-DEG
2200
800
2464
206
310
2284
2091
1912
3RTIMPOFF-25x2400x133-DEG
2400
870
2668
206
310
2485
2276
2081
SERIES 30 | 3-ROLL TRACKING OFFSET FRAME | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RTIMPOFF-30x750x152-DEG
750
290
990
265
240
815
745
680
3RTIMPOFF-30x900x152-DEG
900
340
1144
265
240
959
877
801
3RTIMPOFF-30x1050x152-DEG
1050
390
1296
265
240
1103
1009
922
3RTIMPOFF-30x1200x152-DEG
1200
450
1448
265
240
1276
1167
1067
3RTIMPOFF-30x1350x152-DEG
1350
500
1600
265
240
1420
1299
1187
3RTIMPOFF-30x1500x152-DEG
1500
560
1752
285
240
1593
1458
1332
3RTIMPOFF-30x1650x152-DEG
1650
610
1904
285
310
1736
1590
1453
3RTIMPOFF-30x1800x152-DEG
1800
660
2058
285
310
1880
1722
1574
3RTIMPOFF-30x2000x152-DEG
2000
740
2260
285
310
2111
1933
1767
3RTIMPOFF-30x2100x152-DEG
2100
765
2362
285
310
2183
1999
1827
3RTIMPOFF-30x2200x152-DEG
2200
800
2430
285
310
2284
2091
1912
3RTIMPOFF-30x2400x152-DEG
2400
870
2668
285
310
2485
2276
2081
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES

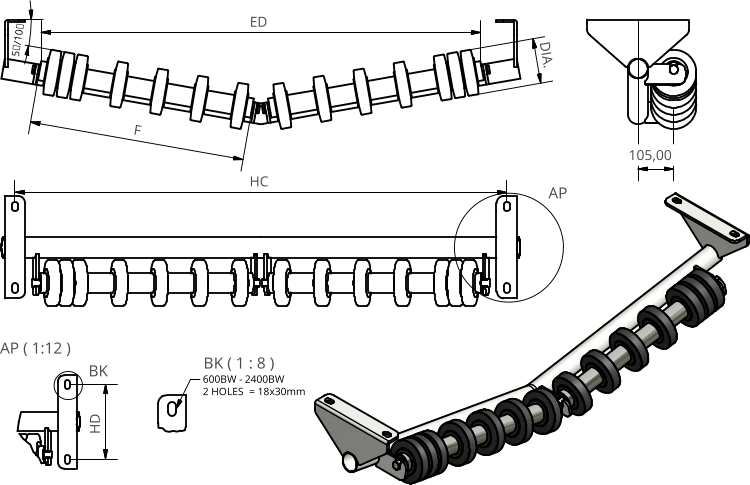

ST
A
NDAR
D
IM
PACT
V-R
E
TUR
N O
FFSET F
RA
M
E
SERIES 25 | 2-ROLL IMPACT OFFSET V-RETURN | 133 DIA.
PART NUMBER
BW
F
HC
HD
ED
IMPTVR-25x600x133-DEG
600
300
838
150
636
IMPTVR-25x750x133-DEG
750
400
990
150
833
IMPTVR-25x900x133-DEG
900
475
1144
150
981
IMPTVR-25x1050x133-DEG
1050
560
1296
150
1148
IMPTVR-25x1200x133-DEG
1200
635
1448
150
1296
IMPTVR-25x1350x133-DEG
1350
720
1600
240
1463
IMPTVR-25x1500x133-DEG
1500
800
1752
240
1621
IMPTVR-25x1650x133-DEG
1650
885
1904
240
1788
IMPTVR-25x1800x133-DEG
1800
965
2058
240
1946
SERIES 30 | 2-ROLL IMPACT OFFSET V-RETURN | 152DIA.
PART NUMBER
BW
F
HC
HD
ED
IMPTVR-30x750x152-DEG
750
400
990
240
833
IMPTVR-30x900x152-DEG
900
475
1144
240
981
IMPTVR-30x1050x152-DEG
1050
560
1296
240
1148
IMPTVR-30x1200x152-DEG
1200
635
1448
240
1296
IMPTVR-30x1350x152-DEG
1350
720
1600
240
1463
IMPTVR-30x1500x152-DEG
1500
800
1752
240
1621
IMPTVR-30x1650x152-DEG
1650
885
1904
310
1788
IMPTVR-30x1800x152-DEG
1800
965
2058
310
1946
IMPTVR-30x2000x152-DEG
2000
1075
2260
310
1946
IMPTVR-30x2100x152-DEG
2100
1146
2362
310
2302
IMPTVR-30x2200x152-DEG
2200
1185
2430
310
2379
IMPTVR-30x2400x152-DEG
2400
1298
2668
310
2602
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
INDUSTRY STANDARDS & COMPLIANCE
SANS 1313 | SANS 1173:2013 | SANS 971:2013 | SANS 968:2013 | SANS 1366:2013
STANDARD 3-ROLL
OFFSET FRAMES
SERIES 25 | 3-ROLL OFFSET | 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45
DEG
3ROFF-25x400x127-DEG
400
170
634
203
0
466
426
390
3ROFF-25x450x127-DEG
450
190
686
203
0
523
479
438
3ROFF-25x500x127-DEG
500
200
736
203
0
552
505
462
3ROFF-25x600x127-DEG
600
240
838
203
0
667
611
558
3ROFF-25x750x127-DEG
750
290
990
203
0
811
743
679
3ROFF-25x900x127-DEG
900
340
1144
203
0
955
875
800
3ROFF-25x1050x127-DEG
1050
390
1296
203
100
1099
1007
921
3ROFF-25x1200x127-DEG
1200
450
1448
203
100
1272
1165
1065
3ROFF-25x1350x127-DEG
1350
500
1600
203
240
1416
1297
1186
3ROFF-25x1500x127-DEG
1500
560
1752
203
240
1589
1455
1331
3ROFF-25x1650x127-DEG
1650
610
1904
203
240
1733
1587
1452
3ROFF-25x1800x127-DEG
1800
660
2058
203
240
1877
1719
1572
3ROFF-25x2000x127-DEG
2000
740
2260
203
310
2107
1930
1766
3ROFF-25x2100x127-DEG
2100
765
2362
203
310
2179
1996
1826
3ROFF-25x2200x127-DEG
2200
800
2430
203
310
2280
2088
1910
3ROFF-25x2400x127-DEG
2400
870
2668
203
310
2481
2273
2079
SERIES 30 | 3-ROLL OFFSET | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45
DEG
3ROFF-30x750x152-DEG
750
290
990
265
240
811
743
679
3ROFF-30x900x152-DEG
900
340
1144
265
240
955
875
800
3ROFF-30x1050x152-DEG
1050
390
1296
265
240
1099
1007
921
3ROFF-30x1200x152-DEG
1200
450
1448
265
240
1272
1165
1065
3ROFF-30x1350x152-DEG
1350
500
1600
265
240
1416
1297
1186
3ROFF-30x1500x152-DEG
1500
560
1752
265
240
1589
1455
1331
3ROFF-30x1650x152-DEG
1650
610
1904
265
310
1733
1587
1452
3ROFF-30x1800x152-DEG
1800
660
2058
265
310
1877
1719
1572
3ROFF-30x2000x152-DEG
2000
740
2260
265
310
2107
1930
1766
3ROFF-30x2100x152-DEG
2100
765
2362
265
310
2179
1996
1826
3ROFF-30x2200x152-DEG
2200
800
2430
265
310
2280
2088
1910
3ROFF-30x2400x152-DEG
2400
870
2668
265
310
2481
2273
2079
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD TRACKING
OFFSET FRAME
SERIES 25 | 3-ROLL TRACKING ANGULAR | 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45
DEG
3RTOFF-25x400x127-DEG
400
170
634
203
0
466
426
390
3RTOFF-25x450x127-DEG
450
190
686
203
0
523
479
438
3RTOFF-25x500x127-DEG
500
200
736
203
0
552
505
462
3RTOFF-25x600x127-DEG
600
240
838
203
0
667
611
558
3RTOFF-25x750x127-DEG
750
290
990
203
0
811
743
679
3RTOFF-25x900x127-DEG
900
340
1144
203
0
955
875
800
3RTOFF-25x1050x127-DEG
1050
390
1296
203
100
1099
1007
921
3RTOFF-25x1200x127-DEG
1200
450
1448
203
100
1272
1165
1065
3RTOFF-25x1350x127-DEG
1350
500
1600
203
240
1416
1297
1186
3RTOFF-25x1500x127-DEG
1500
560
1752
203
240
1589
1455
1331
3RTOFF-25x1650x127-DEG
1650
610
1904
203
240
1733
1587
1452
3RTOFF-25x1800x127-DEG
1800
660
2058
203
240
1877
1719
1572
3RTOFF-25x2000x127-DEG
2000
740
2260
203
310
2107
1930
1766
3RTOFF-25x2100x127-DEG
2100
765
2362
203
310
2179
1996
1826
3RTOFF-25x2200x127-DEG
2200
800
2464
203
310
2280
2088
1910
3RTOFF-25x2400x127-DEG
2400
870
2668
203
310
2481
2273
2079
SERIES 30 | 3-ROLL TRACKING ANGULAR | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45
DEG
3RINL-30x750x152-DEG
750
290
990
265
240
811
743
679
3RINL-30x900x152-DEG
900
340
1144
265
240
955
875
800
3RINL-30x1050x152-DEG
1050
390
1296
265
240
1099
1007
921
3RINL-30x1200x152-DEG
1200
450
1448
265
240
1272
1165
1065
3RINL-30x1350x152-DEG
1350
500
1600
265
240
1416
1297
1186
3RINL-30x1500x152-DEG
1500
560
1752
265
240
1589
1455
1331
3RINL-30x1650x152-DEG
1650
610
1904
265
310
1733
1587
1452
3RINL-30x1800x152-DEG
1800
660
2058
265
310
1877
1719
1572
3RINL-30x2000x152-DEG
2000
740
2260
265
310
2107
1930
1766
3RINL-30x2100x152-DEG
2100
765
2362
265
310
2179
1996
1826
3RINL-30x2200x152-DEG
2200
800
2430
265
310
2280
2088
1910
3RINL-30x2400x152-DEG
2400
870
2668
265
310
2481
2273
2079
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD INLINE
TROUGHING FRAME
SERIES 25 |
3-ROLL INLINE FRAME |
127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45
DEG
3RINL-25x400x127-
DEG
400
170
634
203
0
529
488
450
3RINL-25x450x127-
DEG
450
190
686
203
0
587
541
498
3RINL-25x500x127-
DEG
500
200
736
203
0
615
567
522
3RINL-25x600x127-
DEG
600
240
838
203
0
731
673
619
3RINL-25x750x127-
DEG
750
290
990
203
0
875
805
740
3RINL-25x900x127-
DEG
900
340
1144
203
0
1018
937
860
3RINL-
25x1050x127-DEG
1050
390
1296
203
100
1162
1068
981
3RINL-
25x1200x127-DEG
1200
450
1448
203
100
1335
1227
1126
3RINL-
25x1350x127-DEG
1350
500
1600
203
240
1479
1359
1247
3RINL-
25x1500x127-DEG
1500
560
1752
203
240
1652
1517
1391
3RINL-
25x1650x127-DEG
1650
610
1904
203
240
1796
1649
1512
3RINL-
25x1800x127-DEG
1800
660
2058
203
240
1940
1781
1633
3RINL-
25x2000x127-DEG
2000
740
2260
203
310
2170
1992
1826
3RINL-
25x2100x127-DEG
2100
765
2362
203
310
2242
2058
1886
3RINL-
25x2200x127-DEG
2200
800
2464
203
310
2343
2150
1971
3RINL-
25x2400x127-DEG
2400
870
2668
203
310
2545
2335
2140
SERIES 30 |
3-ROLL INLINE FRAME |
152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45
DEG
3RINL-30x750x152-
DEG
750
290
990
265
240
875
805
740
3RINL-30x900x152-
DEG
900
340
1144
265
240
1018
937
860
3RINL-
30x1050x152-DEG
1050
390
1296
265
240
1162
1068
981
3RINL-
30x1200x152-DEG
1200
450
1448
265
240
1335
1227
1126
3RINL-
30x1350x152-DEG
1350
500
1600
265
240
1479
1359
1247
3RINL-
30x1500x152-DEG
1500
560
1752
265
240
1652
1517
1391
3RINL-
30x1650x152-DEG
1650
610
1904
265
310
1796
1649
1512
3RINL-
30x1800x152-DEG
1800
660
2058
265
310
1940
1781
1633
3RINL-
30x2000x152-DEG
2000
740
2260
265
310
2170
1992
1826
3RINL-
30x2100x152-DEG
2100
765
2362
265
310
2242
2058
1886
3RINL-
30x2200x152-DEG
2200
800
2430
265
310
2343
2150
1971
3RINL-
30x2400x152-DEG
2400
870
2668
265
310
2545
2335
2140
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD IMPACT
O
FFSET FRAMES
V ( 1 : 10
)
V
HC
F
1
50,00
40
0BW -
240
0BW
2 HO
LE
S = 1
8x
30mm
DI
A.
ED
SERIES 25 | 3-ROLL IMP OFFSET
| 133 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RIMPOFF-25x400x133-DEG
400
170
634
206
150
500
465
392
3RIMPOFF-25x450x133-DEG
450
190
686
206
150
527
481
439
3RIMPOFF-25x500x133-DEG
500
200
736
206
150
556
508
463
3RIMPOFF-25x600x133-DEG
600
240
838
206
150
671
613
560
3RIMPOFF-25x750x133-DEG
750
290
990
206
150
815
745
680
3RIMPOFF-25x900x133-DEG
900
340
1144
206
150
959
877
801
3RIMPOFF-25x1050x133-
DEG
1050
390
1296
206
150
1103
1009
922
3RIMPOFF-25x1200x133-
DEG
1200
450
1448
206
150
1276
1167
1067
3RIMPOFF-25x1350x133-
DEG
1350
500
1600
206
240
1420
1299
1187
3RIMPOFF-25x1500x133-
DEG
1500
560
1752
206
240
1593
1458
1332
3RIMPOFF-25x1650x133-
DEG
1650
610
1904
206
240
1736
1590
1453
3RIMPOFF-25x1800x133-
DEG
1800
660
2058
206
240
1880
1722
1574
SERIES 30 | 3-ROLL IMP OFFSET |
152DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RIMPOFF-30x750x152-DEG
750
290
990
265
240
815
745
680
3RIMPOFF-30x900x152-DEG
900
340
1144
265
240
959
877
801
3RIMPOFF-30x1050x152-
DEG
1050
390
1296
265
240
1103
1009
922
3RIMPOFF-30x1200x152-
DEG
1200
450
1448
265
240
1276
1167
1067
3RIMPOFF-30x1350x152-
DEG
1350
500
1600
265
240
1420
1299
1187
3RIMPOFF-30x1500x152-
DEG
1500
560
1752
285
240
1593
1458
1332
3RIMPOFF-30x1650x152-
DEG
1650
610
1904
285
310
1736
1590
1453
3RIMPOFF-30x1800x152-
DEG
1800
660
2058
285
310
1880
1722
1574
3RIMPOFF-30x2000x152-
DEG
2000
740
2260
285
310
2111
1933
1767
3RIMPOFF-30x2100x152-
DEG
2100
765
2362
285
310
2183
1999
1827
3RIMPOFF-30x2200x152-
DEG
2200
800
2430
285
310
2284
2091
1912
3RIMPOFF-30x2400x152-
DEG
2400
870
2668
285
310
2485
2276
2081
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20,
35 OR 45.
TRAC
KIN
G IM
PACT
OFFSET F
RAME
S
ST
AN
DA
R
D 5-R
O
LL
TUBULAR
I
MPA
CT
OF
FSE
T
FR
AM
E
SERIES 25 | 5-ROLL TUBULAR IMPACT FRAME | 133 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45 DEG
5RTIMPOFF-
25x1050x133-DEG
1050
240
1296
206
150
1124
1051
983
5RTIMPOFF-
25x1200x133-DEG
1200
270
1448
206
150
1269
1187
1111
5RTIMPOFF-
25x1350x133-DEG
1350
300
1600
206
240
1415
1324
1239
5RTIMPOFF-
25x1500x133-DEG
1500
340
1752
206
240
1609
1506
1409
5RTIMPOFF-
25x1650x133-DEG
1650
370
1904
206
240
1754
1642
1537
5RTIMPOFF-
25x1800x133-DEG
1800
400
2058
206
240
1900
1778
1665
SERIES 30 | 5-ROLL TUBULAR IMPACT OFFSET | 152DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DE
ED 35
DEG
ED 45
DEG
5RTIMPOFF-
30x1050x152-DEG
1050
560
1296
265
240
1124
1051
983
5RTIMPOFF-
30x1200x152-DEG
1200
635
1448
265
240
1269
1187
1111
5RTIMPOFF-
30x1350x152-DEG
1350
720
1600
265
240
1415
1324
1239
5RTIMPOFF-
30x1500x152-DEG
1500
800
1752
285
240
1609
1506
1409
5RTIMPOFF-
30x1650x152-DEG
1650
885
1904
285
310
1754
1642
1537
5RTIMPOFF-
30x1800x152-DEG
1800
965
2058
285
310
1900
1778
1665
5RTIMPOFF-
30x2000x152-DEG
2000
1075
2260
285
310
2142
2006
1878
5RTIMPOFF-
30x2100x152-DEG
2100
1146
2362
285
310
2263
2119
1985
5RTIMPOFF-
30x2200x152-DEG
2200
1185
2430
285
310
2336
2188
2049
5RTIMPOFF-
30x2400x152-DEG
2400
1298
2668
285
310
2559
2397
2245
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
SERIES 25 | 3-ROLL TRACKING OFFSET FRAME | 133 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45
DEG
3RTIMPOFF-
25x400x133-DEG
400
170
634
206
0
500
465
392
3RTIMPOFF-
25x450x133-DEG
450
190
686
206
0
527
481
439
3RTIMPOFF-
25x500x133-DEG
500
200
736
206
0
556
508
463
3RTIMPOFF-
25x600x133-DEG
600
240
838
206
0
671
613
560
3RTIMPOFF-
25x750x133-DEG
750
290
990
206
0
815
745
680
3RTIMPOFF-
25x900x133-DEG
900
340
1144
206
0
959
877
801
3RTIMPOFF-
25x1050x133-DEG
1050
390
1296
206
100
1103
1009
922
3RTIMPOFF-
25x1200x133-DEG
1200
450
1448
206
100
1276
1167
1067
3RTIMPOFF-
25x1350x133-DEG
1350
500
1600
206
100
1420
1299
1187
3RTIMPOFF-
25x1500x133-DEG
1500
560
1752
206
240
1593
1458
1332
3RTIMPOFF-
25x1650x133-DEG
1650
610
1904
206
240
1736
1590
1453
3RTIMPOFF-
25x1800x133-DEG
1800
660
2058
206
240
1880
1722
1574
3RTIMPOFF-
25x2000x133-DEG
2000
740
2260
206
310
2111
1933
1767
3RTIMPOFF-
25x2100x133-DEG
2100
765
2362
206
310
2183
1999
1827
3RTIMPOFF-
25x2200x133-DEG
2200
800
2464
206
310
2284
2091
1912
3RTIMPOFF-
25x2400x133-DEG
2400
870
2668
206
310
2485
2276
2081
SERIES 30 | 3-ROLL TRACKING OFFSET FRAME | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35 DEG
ED 45 DEG
3RTIMPOFF-
30x750x152-DEG
750
290
990
265
240
815
745
680
3RTIMPOFF-
30x900x152-DEG
900
340
1144
265
240
959
877
801
3RTIMPOFF-
30x1050x152-DEG
1050
390
1296
265
240
1103
1009
922
3RTIMPOFF-
30x1200x152-DEG
1200
450
1448
265
240
1276
1167
1067
3RTIMPOFF-
30x1350x152-DEG
1350
500
1600
265
240
1420
1299
1187
3RTIMPOFF-
30x1500x152-DEG
1500
560
1752
285
240
1593
1458
1332
3RTIMPOFF-
30x1650x152-DEG
1650
610
1904
285
310
1736
1590
1453
3RTIMPOFF-
30x1800x152-DEG
1800
660
2058
285
310
1880
1722
1574
3RTIMPOFF-
30x2000x152-DEG
2000
740
2260
285
310
2111
1933
1767
3RTIMPOFF-
30x2100x152-DEG
2100
765
2362
285
310
2183
1999
1827
3RTIMPOFF-
30x2200x152-DEG
2200
800
2430
285
310
2284
2091
1912
3RTIMPOFF-
30x2400x152-DEG
2400
870
2668
285
310
2485
2276
2081
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
ST
A
NDAR
D
IM
PACT
V-R
E
TUR
N O
FFSET F
RA
M
E
SERIES 25 | 2-ROLL IMPACT OFFSET V-RETURN | 133 DIA.
PART NUMBER
BW
F
HC
HD
ED
IMPTVR-25x600x133-DEG
600
300
838
150
636
IMPTVR-25x750x133-DEG
750
400
990
150
833
IMPTVR-25x900x133-DEG
900
475
1144
150
981
IMPTVR-25x1050x133-DEG
1050
560
1296
150
1148
IMPTVR-25x1200x133-DEG
1200
635
1448
150
1296
IMPTVR-25x1350x133-DEG
1350
720
1600
240
1463
IMPTVR-25x1500x133-DEG
1500
800
1752
240
1621
IMPTVR-25x1650x133-DEG
1650
885
1904
240
1788
IMPTVR-25x1800x133-DEG
1800
965
2058
240
1946
SERIES 30 | 2-ROLL IMPACT OFFSET V-RETURN | 152DIA.
PART NUMBER
BW
F
HC
HD
ED
IMPTVR-30x750x152-DEG
750
400
990
240
833
IMPTVR-30x900x152-DEG
900
475
1144
240
981
IMPTVR-30x1050x152-DEG
1050
560
1296
240
1148
IMPTVR-30x1200x152-DEG
1200
635
1448
240
1296
IMPTVR-30x1350x152-DEG
1350
720
1600
240
1463
IMPTVR-30x1500x152-DEG
1500
800
1752
240
1621
IMPTVR-30x1650x152-DEG
1650
885
1904
310
1788
IMPTVR-30x1800x152-DEG
1800
965
2058
310
1946
IMPTVR-30x2000x152-DEG
2000
1075
2260
310
1946
IMPTVR-30x2100x152-DEG
2100
1146
2362
310
2302
IMPTVR-30x2200x152-DEG
2200
1185
2430
310
2379
IMPTVR-30x2400x152-DEG
2400
1298
2668
310
2602
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
STANDARD TR
ACK
ING
RETURN FR
AME
SERIES 25 |
1-ROLL TRACKING RETURN |
127 DIA.
PART NUMBER
BW
F
HC
H
HD
1RTR-25x400x127
400
484
634
203
100
1RTR-25x450x127
450
536
686
203
100
1RTR-25x500x127
500
586
736
203
100
1RTR-25x600x127
600
688
838
203
100
1RTR-25x750x127
750
840
990
203
100
1RTR-25x900x127
900
994
1144
203
100
1RTR-25x1050x127
1050
1146
1296
203
100
1RTR-25x1200x127
1200
1298
1448
203
100
1RTR-25x1350x127
1350
1450
1600
203
100
1RTR-25x1500x127
1500
1602
1752
203
100
1RTR-25x1650x127
1650
1754
1904
203
100
1RTR-25x1800x127
1800
1908
2058
203
100
1RTR-25x2000x127
2000
2110
2260
203
150
1RTR-25x2100x127
2100
2212
2362
203
150
1RTR-25x2200x127
2200
2310
2464
203
150
1RTR-25x2400x127
2400
2518
2668
203
240
SERIES 30 | 1-ROLL TRACKING RETURN
|
152DIA.
PART NUMBER
BW
R
HC
HD
1RTR-30x750x152
750
840
990
100
1RTR-30x900x152
900
994
1144
100
1RTR-30x1050x152
1050
1146
1296
100
1RTR-30x1200x152
1200
1298
1448
100
1RTR-30x1350x152
1350
1450
1600
100
1RTR-30x1500x152
1500
1602
1752
150
1RTR-30x1650x152
1650
1754
1904
150
1RTR-30x1800x152
1800
1908
2058
150
1RTR-30x2000x152
2000
2110
2260
240
1RTR-30x2100x152
2100
2212
2362
240
1RTR-30x2200x152
2200
2310
2430
240
1RTR-30x2400x152
2400
2518
2668
240
STANDARD 5-ROLL TUBULAR
OFFSET FRAME
SERIES 25 | 5-ROLL TUBULAR OFFSET
| 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 D
ED 35 D
ED 45 DE
5RTOFF-25x1050x127-DEG
1050
240
1296
203
100
1124
1051
983
5RTOFF-25x1200x127-DEG
1200
270
1448
203
100
1269
1187
1111
5RTOFF-25x1350x127-DEG
1350
300
1600
203
240
1415
1324
1239
5RTOFF-25x1500x127-DEG
1500
340
1752
203
240
1609
1506
1409
5RTOFF-25x1650x127-DEG
1650
370
1904
203
240
1754
1642
1537
5RTOFF-25x1800x127-DEG
1800
400
2058
203
240
1900
1778
1665
5RTOFF-25x2000x127-DEG
2000
450
2260
203
310
2142
2006
1878
5RTOFF-25x2100x127-DEG
2100
475
2362
203
310
2263
2119
1985
5RTOFF-25x2200x127-DEG
2200
490
2464
203
310
2336
2188
2049
5RTOFF-25x2400x127-DEG
2400
536
2668
203
310
2559
2397
2245
SERIES 30 | 5-ROLL TUBULAR OFFSET
| 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 D
ED 35 D
ED 45
DE
5RTOFF-
30x1050x152-DEG
1050
560
1296
265
240
1124
1051
983
5RTOFF-
30x1200x152-DEG
1200
635
1448
265
240
1269
1187
1111
5RTOFF-
30x1350x152-DEG
1350
720
1600
265
240
1415
1324
1239
5RTOFF-
30x1500x152-DEG
1500
800
1752
285
240
1608
1506
1409
5RTOFF-
30x1650x152-DEG
1650
885
1904
285
310
1754
1642
1537
5RTOFF-
30x1800x152-DEG
1800
965
2058
285
310
1900
1778
1665
5RTOFF-
30x2000x152-DEG
2000
1075
2260
285
310
2142
2006
1878
5RTOFF-
30x2100x152-DEG
2100
1146
2362
285
310
2263
2119
1985
5RTOFF-
30x2200x152-DEG
2200
1185
2430
285
310
2336
2188
2049
5RTOFF-
30x2400x152-DEG
2400
1298
2668
285
310
2559
2397
2245
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD OFFSET
PICKING FRAME
SERIES 25 | 3-ROLL OFFSET PICKING FRAME | 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED
3RPICKOFF-25x750x127
750
586
990
203
150
897
3RPICKOFF-25x900x127
900
688
1144
203
150
999
3RPICKOFF-25x1050x127
1050
840
1296
203
150
1151
3RPICKOFF-25x1200x127
1200
994
1448
203
150
1305
3RPICKOFF-25x1350x127
1350
1146
1600
203
240
1457
3RPICKOFF-25x1500x127
1500
1298
1752
203
240
1609
3RPICKOFF-25x1650x127
1650
1450
1908
203
240
1761
3RPICKOFF-25x1800x127
1800
1602
2058
203
240
1913
3RPICKOFF-25x2000x127
2000
1754
2260
203
310
2065
3RPICKOFF-25x2100x127
2100
1908
2362
203
310
2219
3RPICKOFF-25x2200x127
2200
2110
2430
203
310
2421
3RPICKOFF-25x2400x127
2400
2212
2668
203
310
2523
SERIES 30 | 3-ROLL OFFSET PICKING FRAME | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED
5RTOFF-30x750x152-DEG
750
568
990
265
240
897
5RTOFF-30x900x152-DEG
900
688
1144
265
240
999
5RTOFF-30x1050x152-DEG
1050
560
1296
265
240
1151
5RTOFF-30x1200x152-DEG
1200
635
1448
265
240
1305
5RTOFF-30x1350x152-DEG
1350
720
1600
265
240
1457
5RTOFF-30x1500x152-DEG
1500
800
1752
265
310
1609
5RTOFF-30x1650x152-DEG
1650
885
1904
265
310
1761
5RTOFF-30x1800x152-DEG
1800
965
2058
265
310
1913
5RTOFF-30x2000x152-DEG
2000
1075
2260
265
310
2065
5RTOFF-30x2100x152-DEG
2100
1146
2362
265
310
2219
5RTOFF-30x2200x152-DEG
2200
1185
2430
265
310
2421
5RTOFF-30x2400x152-DEG
2400
1298
2668
265
310
2523
**SERIES 30 FRAMES 18x30mm HOLES
SERIES 25 | 3-ROLL INLINE SELF ALIGNING | 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45
DEG
3RSAINL-
25x400x127-DEG
400
170
634
203
0
529
488
450
3RSAINL-
25x450x127-DEG
450
190
686
203
0
587
541
498
3RSAINL-
25x500x127-DEG
500
200
736
203
0
615
567
522
3RSAINL-
25x600x127-DEG
600
240
838
203
0
731
673
619
3RSAINL-
25x750x127-DEG
750
290
990
203
0
875
805
740
3RSAINL-
25x900x127-DEG
900
340
1144
203
0
1018
937
860
3RSAINL-
25x1050x127-DEG
1050
390
1296
203
100
1162
1068
981
3RSAINL-
25x1200x127-DEG
1200
450
1448
203
100
1335
1227
1126
3RSAINL-
25x1350x127-DEG
1350
500
1600
203
240
1479
1359
1247
3RSAINL-
25x1500x127-DEG
1500
560
1752
203
240
1652
1517
1391
3RSAINL-
25x1650x127-DEG
1650
610
1904
203
240
1796
1649
1512
3RSAINL-
25x1800x127-DEG
1800
660
2058
203
240
1940
1781
1633
3RSAINL-
25x2000x127-DEG
2000
740
2260
203
310
2170
1992
1826
3RSAINL-
25x2100x127-DEG
2100
765
2362
203
310
2242
2058
1886
3RSAINL-
25x2200x127-DEG
2200
800
2464
203
310
2343
2150
1971
3RSAINL-
25x2400x127-DEG
2400
870
2668
203
310
2545
2335
2140
SERIES 30 | 3-ROLL INLINE SELF ALIGNING | 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20
DEG
ED 35
DEG
ED 45
DEG
3RSAINL-
30x750x152-DEG
750
290
990
265
240
875
805
740
3RSAINL-
30x900x152-DEG
900
340
1144
265
240
1018
937
860
3RSAINL-
30x1050x152-DEG
1050
390
1296
265
240
1162
1068
981
3RSAINL-
30x1200x152-DEG
1200
450
1448
265
240
1335
1227
1126
3RSAINL-
30x1350x152-DEG
1350
500
1600
265
240
1479
1359
1247
3RSAINL-
30x1500x152-DEG
1500
560
1752
265
240
1652
1517
1391
3RSAINL-
30x1650x152-DEG
1650
610
1904
265
310
1796
1649
1512
3RSAINL-
30x1800x152-DEG
1800
660
2058
265
310
1940
1781
1633
3RSAINL-
30x2000x152-DEG
2000
740
2260
265
310
2170
1992
1826
3RSAINL-
30x2100x152-DEG
2100
765
2362
265
310
2242
2058
1886
3RSAINL-
30x2200x152-DEG
2200
800
2430
265
310
2343
2150
1971
3RSAINL-
30x2400x152-DEG
2400
870
2668
265
310
2545
2335
2140
STANDARD IN-LINE
SELF-ALIGNING FRAME
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
INDUSTRY STANDARDS & COMPLIANCE
SANS 1313 | SANS 1173:2013 | SANS 971:2013 | SANS 968:2013 | SANS 1366:2013
COPYRIGHT @ 2026 | KANGALA CONVEYOR CC | designed by jacqueline designs
Quality comes first
COPYRIGHT @ 2026 | KANGALA CONVEYOR CC
designed by jacqueline designs
Quality comes first
