CONVEYOR
IDLERS &
PULLEYS
Kangala Conveyor are stockists and suppliers of all types of new steel and HOPE
conveyor idlers and conveyor pulleys.
We hold an extensive range of idler frames and rolls in stock, which are all
manufactured to SABS 1313 specifications and include all the standard sizes of
troughing, return, impact and training idlers. We also manufacture special nonÍ
standard sizes if so required by our customers.
We are also able to supply anti-seize and anti-runback idler rolls as well as
underground conveyor structure.
Roll diameters offered; 50/57/76/101/127/152 Shaft series offered;
SER10/20/25/30/35/40

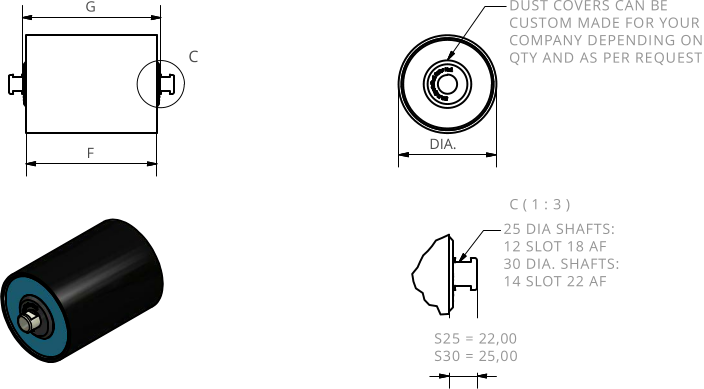

STANDARD IDLERS
SERIES 25 & 30SERIES 25 | 3-ROLL FRAMES |
127 DIA.
PART NUMBER
BW
F
G
3RS-25x170x127
400
170
180
3RS-25x190x127
450
190
200
3RS-25x200x127
500
200
210
3RS-25x240x127
600
240
250
3RS-25x290x127
750
290
300
3RS-25x340x127
900
340
350
3RS-25x390x127
1050
390
400
3RS-25x450x127
1200
450
460
3RS-25x500x127
1350
500
510
3RS-25x560x127
1500
560
570
3RS-25x610x127
1650
610
620
3RS-25x660x127
1800
660
670
3RS-25x740x127
2000
740
750
3RS-25x765x127
2100
765
775
3RS-25x800x127
2200
800
810
3RS-25x870x127
2400
870
880
SERIES 30 | 3 ROLL FRAMES | 152DIA.
PART NUMBER
BW
F
G
3RS-30x290x152
750
290
300
3RS-30x340x152
900
340
350
3RS-30x390x152
1050
390
400
3RS-30x450x152
1200
450
460
3RS-30x500x152
1350
500
510
3RS-30x560x152
1500
560
570
3RS-30x610x152
1650
610
620
3RS-30x660x152
1800
660
670
3RS-30x740x152
2000
740
750
3RS-30x765x152
2100
765
775
3RS-30x800x152
2200
800
810
3RS-30x870x152
2400
870
880

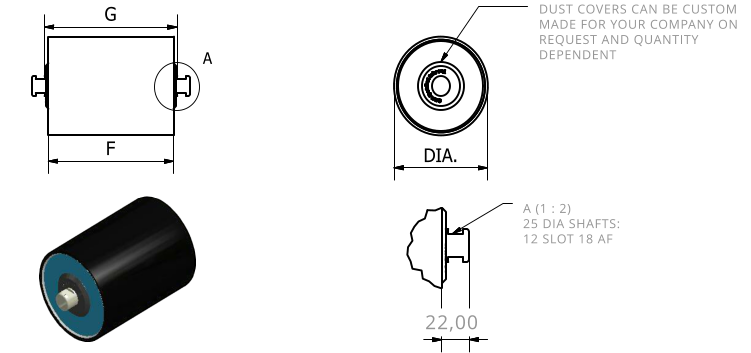

STANDARD 5-ROLL IDLERS
SERIES 25
PART NUMBER
BW
F
G
5RS-25x240x127
1050
240
250
5RS-25x270x127
1200
270
280
5RS-25x300x127
1350
300
310
5RS-25x340x127
1500
340
350
5RS-25x370x127
1650
370
380
5RS-25x400x127
1800
400
410
5RS-25x450x127
2000
450
450
5RS-25x475x127
2100
475
485
5RS-25x490x127
2200
490
500
5RS-25x536x127
2400
536
546
SERIES 30
5-ROLL
FRAMES
152 DIA.
PART NUMBER
BW
F
G
5RS-30x240x152
1050
240
250
5RS-30x270x152
1200
270
280
5RS-30x300x152
1350
300
310
5RS-30x340x152
1500
340
350
5RS-30x370x152
1650
370
380
5RS-30x400x152
1800
400
410
5RS-30x450x152
2000
450
460
5RS-30x475x152
2100
475
485
5RS-30x490x152
2200
490
500
5RS-30x536x152
2400
536
546

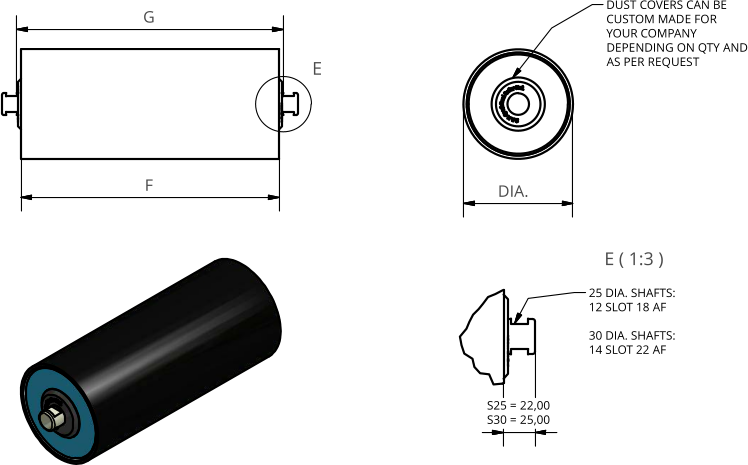

STANDARD 1-ROLL FLAT RETURN IDLERS
SERIES 25
1-ROLL RETURN
127 DIA.
PART NUMBER
BW
F
G
FRS-25x484x127
400
484
494
FRS-25x536x127
450
536
546
FRS-25x586x127
500
586
596
FRS-25x688x127
600
688
698
FRS-25x840x127
750
840
850
FRS-25x994x127
900
994
1004
FRS-25x1146x127
1050
1146
1156
FRS-25x1298x127
1200
1298
1308
FRS-25x1450x127
1350
1450
1460
FRS-25x1602x127
1500
1602
1612
FRS-25x1754x127
1650
1754
1764
FRS-25x1908x127
1800
1908
1918
FRS-25x2110x127
2000
2110
2120
FRS-25x2212x127
2100
2212
2222
FRS-25x2310x127
2200
2310
2320
FRS-25x2518x127
2400
2518
2528
SERIES 30
1-ROLL
PART NUMBER
BW
F
G
2RVS-30x840x152
750
840
850
2RVS-30x994x152
900
994
1004
2RVS-30x1146x152
1050
1146
1156
2RVS-30x1298x152
1200
1298
1308
2RVS-30x1450x152
1350
1450
1460
2RVS-30x1602x152
1500
1602
1612
2RVS-30x1754x152
1650
1754
1764
2RVS-30x1908x152
1800
1908
1918
2RVS-30x2110x152
2000
2110
2120
2RVS-30x2212x152
2100
2212
2222
2RVS-30x2310x152
2200
2310
2320
2RVS-30x2518x152
2400
2518
2528
STANDARD 2-ROLL V RETURN IDLERS
SERIES 25
2-ROLL V- RETURNS
PART NUMBER
BW
F
G
2RVS-25x300x127
600
300
310
2RVS-25x400x127
750
400
410
2RVS-25x475x127
900
475
485
2RVS-25x560x127
1050
560
570
2RVS-25x635x127
1200
635
645
2RVS-25x720x127
1350
720
730
2RVS-25x800x127
1500
800
810
2RVS-25x885x127
1650
885
895
2RVS-25x965x127
1800
965
975
2RVS-25x1075x127
2000
1075
1085
2RVS-25x1146x127
2100
1146
1156
2RVS-25x1185x127
2200
1185
1195
2RVS-25x1298x127
2400
1298
1308
SERIES 30
2-ROLL V- RETURNS
PART NUMBER
BW
F
G
2RVS-30x400x152
750
400
410
2RVS-30x475x152
900
475
485
2RVS-30x560x152
1050
560
570
2RVS-30x635x152
1200
635
645
2RVS-30x720x152
1350
720
730
2RVS-30x800x152
1500
800
810
2RVS-30x885x152
1650
885
895
2RVS-30x965x152
1800
965
975
2RVS-30x1075x152
2000
1075
1085
2RVS-30x1146x152
2100
1146
1156
2RVS-30x1185x152
2200
1185
1195
2RVS-30x400x152
2400
1298
1308
STANDARD 3-ROLL OFFSET FRAMES
SERIES 25
3-ROLL OFFSET
127DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3ROFF-25x400x127-DEG
400
170
634
203
0
466
426
390
3ROFF-25x450x127-DEG
450
190
686
203
0
523
479
438
3ROFF-25x500x127-DEG
500
200
736
203
0
552
505
462
3ROFF-25x600x127-DEG
600
240
838
203
0
667
611
558
3ROFF-25x750x127-DEG
750
290
990
203
0
811
743
679
3ROFF-25x900x127-DEG
900
340
1144
203
0
955
875
800
3ROFF-25x1050x127-DEG
1050
390
1296
203
100
1099
1007
921
3ROFF-25x1200x127-DEG
1200
450
1448
203
100
1272
1165
1065
3ROFF-25x1350x127-DEG
1350
500
1600
203
240
1416
1297
1186
3ROFF-25x1500x127-DEG
1500
560
1752
203
240
1589
1455
1331
3ROFF-25x1650x127-DEG
1650
610
1904
203
240
1733
1587
1452
3ROFF-25x1800x127-DEG
1800
660
2058
203
240
1877
1719
1572
3ROFF-25x2000x127-DEG
2000
740
2260
203
310
2107
1930
1766
3ROFF-25x2100x127-DEG
2100
765
2362
203
310
2179
1996
1826
3ROFF-25x2200x127-DEG
2200
800
2430
203
310
2280
2088
1910
3ROFF-25x2400x127-DEG
2400
870
2668
203
310
2481
2273
2079
SERIES 30 3-ROLL OFFSET 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3ROFF-30x750x152-DEG
750
290
990
265
240
811
743
679
3ROFF-30x900x152-DEG
900
340
1144
265
240
955
875
800
3ROFF-30x1050x152-DEG
1050
390
1296
265
240
1099
1007
921
3ROFF-30x1200x152-DEG
1200
450
1448
265
240
1272
1165
1065
3ROFF-30x1350x152-DEG
1350
500
1600
265
240
1416
1297
1186
3ROFF-30x1500x152-DEG
1500
560
1752
265
240
1589
1455
1331
3ROFF-30x1650x152-DEG
1650
610
1904
265
310
1733
1587
1452
3ROFF-30x1800x152-DEG
1800
660
2058
265
310
1877
1719
1572
3ROFF-30x2000x152-DEG
2000
740
2260
265
310
2107
1930
1766
3ROFF-30x2100x152-DEG
2100
765
2362
265
310
2179
1996
1826
3ROFF-30x2200x152-DEG
2200
800
2430
265
310
2280
2088
1910
3ROFF-30x2400x152-DEG
2400
870
2668
265
310
2481
2273
2079
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD TRACKING OFFSET FRAME
SERIES 25 3-ROLL TRACKING ANGULAR 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RTOFF-25x400x127-DEG
400
170
634
203
0
466
426
390
3RTOFF-25x450x127-DEG
450
190
686
203
0
523
479
438
3RTOFF-25x500x127-DEG
500
200
736
203
0
552
505
462
3RTOFF-25x600x127-DEG
600
240
838
203
0
667
611
558
3RTOFF-25x750x127-DEG
750
290
990
203
0
811
743
679
3RTOFF-25x900x127-DEG
900
340
1144
203
0
955
875
800
3RTOFF-25x1050x127-DEG
1050
390
1296
203
100
1099
1007
921
3RTOFF-25x1200x127-DEG
1200
450
1448
203
100
1272
1165
1065
3RTOFF-25x1350x127-DEG
1350
500
1600
203
240
1416
1297
1186
3RTOFF-25x1500x127-DEG
1500
560
1752
203
240
1589
1455
1331
3RTOFF-25x1650x127-DEG
1650
610
1904
203
240
1733
1587
1452
3RTOFF-25x1800x127-DEG
1800
660
2058
203
240
1877
1719
1572
3RTOFF-25x2000x127-DEG
2000
740
2260
203
310
2107
1930
1766
3RTOFF-25x2100x127-DEG
2100
765
2362
203
310
2179
1996
1826
3RTOFF-25x2200x127-DEG
2200
800
2464
203
310
2280
2088
1910
3RTOFF-25x2400x127-DEG
2400
870
2668
203
310
2481
2273
2079
SERIES 30 3-ROLL TRACKING ANGULAR 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RINL-30x750x152-DEG
750
290
990
265
240
811
743
679
3RINL-30x900x152-DEG
900
340
1144
265
240
955
875
800
3RINL-30x1050x152-DEG
1050
390
1296
265
240
1099
1007
921
3RINL-30x1200x152-DEG
1200
450
1448
265
240
1272
1165
1065
3RINL-30x1350x152-DEG
1350
500
1600
265
240
1416
1297
1186
3RINL-30x1500x152-DEG
1500
560
1752
265
240
1589
1455
1331
3RINL-30x1650x152-DEG
1650
610
1904
265
310
1733
1587
1452
3RINL-30x1800x152-DEG
1800
660
2058
265
310
1877
1719
1572
3RINL-30x2000x152-DEG
2000
740
2260
265
310
2107
1930
1766
3RINL-30x2100x152-DEG
2100
765
2362
265
310
2179
1996
1826
3RINL-30x2200x152-DEG
2200
800
2430
265
310
2280
2088
1910
3RINL-30x2400x152-DEG
2400
870
2668
265
310
2481
2273
2079
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD INLINE TROUGHING FRAME
SERIES 25
3-ROLL INLINE FRAME
127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RINL-25x400x127-DEG
400
170
634
203
0
529
488
450
3RINL-25x450x127-DEG
450
190
686
203
0
587
541
498
3RINL-25x500x127-DEG
500
200
736
203
0
615
567
522
3RINL-25x600x127-DEG
600
240
838
203
0
731
673
619
3RINL-25x750x127-DEG
750
290
990
203
0
875
805
740
3RINL-25x900x127-DEG
900
340
1144
203
0
1018
937
860
3RINL-25x1050x127-DEG
1050
390
1296
203
100
1162
1068
981
3RINL-25x1200x127-DEG
1200
450
1448
203
100
1335
1227
1126
3RINL-25x1350x127-DEG
1350
500
1600
203
240
1479
1359
1247
3RINL-25x1500x127-DEG
1500
560
1752
203
240
1652
1517
1391
3RINL-25x1650x127-DEG
1650
610
1904
203
240
1796
1649
1512
3RINL-25x1800x127-DEG
1800
660
2058
203
240
1940
1781
1633
3RINL-25x2000x127-DEG
2000
740
2260
203
310
2170
1992
1826
3RINL-25x2100x127-DEG
2100
765
2362
203
310
2242
2058
1886
3RINL-25x2200x127-DEG
2200
800
2464
203
310
2343
2150
1971
3RINL-25x2400x127-DEG
2400
870
2668
203
310
2545
2335
2140
SERIES 30
3-ROLL INLINE FRAME
152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RINL-30x750x152-DEG
750
290
990
265
240
875
805
740
3RINL-30x900x152-DEG
900
340
1144
265
240
1018
937
860
3RINL-30x1050x152-DEG
1050
390
1296
265
240
1162
1068
981
3RINL-30x1200x152-DEG
1200
450
1448
265
240
1335
1227
1126
3RINL-30x1350x152-DEG
1350
500
1600
265
240
1479
1359
1247
3RINL-30x1500x152-DEG
1500
560
1752
265
240
1652
1517
1391
3RINL-30x1650x152-DEG
1650
610
1904
265
310
1796
1649
1512
3RINL-30x1800x152-DEG
1800
660
2058
265
310
1940
1781
1633
3RINL-30x2000x152-DEG
2000
740
2260
265
310
2170
1992
1826
3RINL-30x2100x152-DEG
2100
765
2362
265
310
2242
2058
1886
3RINL-30x2200x152-DEG
2200
800
2430
265
310
2343
2150
1971
3RINL-30x2400x152-DEG
2400
870
2668
265
310
2545
2335
2140
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
SEIRES 25 3-ROLL INLINE SELF ALIGNING 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RSAINL-25x400x127-DEG
400
170
634
203
0
529
488
450
3RSAINL-25x450x127-DEG
450
190
686
203
0
587
541
498
3RSAINL-25x500x127-DEG
500
200
736
203
0
615
567
522
3RSAINL-25x600x127-DEG
600
240
838
203
0
731
673
619
3RSAINL-25x750x127-DEG
750
290
990
203
0
875
805
740
3RSAINL-25x900x127-DEG
900
340
1144
203
0
1018
937
860
3RSAINL-25x1050x127-DEG
1050
390
1296
203
100
1162
1068
981
3RSAINL-25x1200x127-DEG
1200
450
1448
203
100
1335
1227
1126
3RSAINL-25x1350x127-DEG
1350
500
1600
203
240
1479
1359
1247
3RSAINL-25x1500x127-DEG
1500
560
1752
203
240
1652
1517
1391
3RSAINL-25x1650x127-DEG
1650
610
1904
203
240
1796
1649
1512
3RSAINL-25x1800x127-DEG
1800
660
2058
203
240
1940
1781
1633
3RSAINL-25x2000x127-DEG
2000
740
2260
203
310
2170
1992
1826
3RSAINL-25x2100x127-DEG
2100
765
2362
203
310
2242
2058
1886
3RSAINL-25x2200x127-DEG
2200
800
2464
203
310
2343
2150
1971
3RSAINL-25x2400x127-DEG
2400
870
2668
203
310
2545
2335
2140
SEIRES 30 3-ROLL INLINE SELF ALIGNING 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RSAINL-30x750x152-DEG
750
290
990
265
240
875
805
740
3RSAINL-30x900x152-DEG
900
340
1144
265
240
1018
937
860
3RSAINL-30x1050x152-DEG
1050
390
1296
265
240
1162
1068
981
3RSAINL-30x1200x152-DEG
1200
450
1448
265
240
1335
1227
1126
3RSAINL-30x1350x152-DEG
1350
500
1600
265
240
1479
1359
1247
3RSAINL-30x1500x152-DEG
1500
560
1752
265
240
1652
1517
1391
3RSAINL-30x1650x152-DEG
1650
610
1904
265
310
1796
1649
1512
3RSAINL-30x1800x152-DEG
1800
660
2058
265
310
1940
1781
1633
3RSAINL-30x2000x152-DEG
2000
740
2260
265
310
2170
1992
1826
3RSAINL-30x2100x152-DEG
2100
765
2362
265
310
2242
2058
1886
3RSAINL-30x2200x152-DEG
2200
800
2430
265
310
2343
2150
1971
3RSAINL-30x2400x152-DEG
2400
870
2668
265
310
2545
2335
2140
STANDARD INLINE SELF-ALIGNING FRAME
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD OFFSET PICKING FRAME
SERIES 25 3-ROLL OFFSET PICKING FRAME 127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED
3RPICKOFF-25x750x127
750
586
990
203
150
897
3RPICKOFF-25x900x127
900
688
1144
203
150
999
3RPICKOFF-25x1050x127
1050
840
1296
203
150
1151
3RPICKOFF-25x1200x127
1200
994
1448
203
150
1305
3RPICKOFF-25x1350x127
1350
1146
1600
203
240
1457
3RPICKOFF-25x1500x127
1500
1298
1752
203
240
1609
3RPICKOFF-25x1650x127
1650
1450
1908
203
240
1761
3RPICKOFF-25x1800x127
1800
1602
2058
203
240
1913
3RPICKOFF-25x2000x127
2000
1754
2260
203
310
2065
3RPICKOFF-25x2100x127
2100
1908
2362
203
310
2219
3RPICKOFF-25x2200x127
2200
2110
2430
203
310
2421
3RPICKOFF-25x2400x127
2400
2212
2668
203
310
2523
SERIES 30 3-ROLL OFFSET PICKING FRAME 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED
5RTOFF-30x750x152-DEG
750
568
990
265
240
897
5RTOFF-30x900x152-DEG
900
688
1144
265
240
999
5RTOFF-30x1050x152-DEG
1050
560
1296
265
240
1151
5RTOFF-30x1200x152-DEG
1200
635
1448
265
240
1305
5RTOFF-30x1350x152-DEG
1350
720
1600
265
240
1457
5RTOFF-30x1500x152-DEG
1500
800
1752
265
310
1609
5RTOFF-30x1650x152-DEG
1650
885
1904
265
310
1761
5RTOFF-30x1800x152-DEG
1800
965
2058
265
310
1913
5RTOFF-30x2000x152-DEG
2000
1075
2260
265
310
2065
5RTOFF-30x2100x152-DEG
2100
1146
2362
265
310
2219
5RTOFF-30x2200x152-DEG
2200
1185
2430
265
310
2421
5RTOFF-30x2400x152-DEG
2400
1298
2668
265
310
2523
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD 5-ROLL TUBULAR OFFSET FRAME
SERIES 25
5-ROLL TUBULAR OFFSET
127 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 D
ED 35 D
ED 45 DE
5RTOFF-25x1050x127-DEG
1050
240
1296
203
100
1124
1051
983
5RTOFF-25x1200x127-DEG
1200
270
1448
203
100
1269
1187
1111
5RTOFF-25x1350x127-DEG
1350
300
1600
203
240
1415
1324
1239
5RTOFF-25x1500x127-DEG
1500
340
1752
203
240
1609
1506
1409
5RTOFF-25x1650x127-DEG
1650
370
1904
203
240
1754
1642
1537
5RTOFF-25x1800x127-DEG
1800
400
2058
203
240
1900
1778
1665
5RTOFF-25x2000x127-DEG
2000
450
2260
203
310
2142
2006
1878
5RTOFF-25x2100x127-DEG
2100
475
2362
203
310
2263
2119
1985
5RTOFF-25x2200x127-DEG
2200
490
2464
203
310
2336
2188
2049
5RTOFF-25x2400x127-DEG
2400
536
2668
203
310
2559
2397
2245
SERIES 30
5-ROLL TUBULAR OFFSET
152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 D
ED 35 D
ED 45 DE
5RTOFF-30x1050x152-
DEG
1050
560
1296
265
240
1124
1051
983
5RTOFF-30x1200x152-
DEG
1200
635
1448
265
240
1269
1187
1111
5RTOFF-30x1350x152-
DEG
1350
720
1600
265
240
1415
1324
1239
5RTOFF-30x1500x152-
DEG
1500
800
1752
285
240
1608
1506
1409
5RTOFF-30x1650x152-
DEG
1650
885
1904
285
310
1754
1642
1537
5RTOFF-30x1800x152-
DEG
1800
965
2058
285
310
1900
1778
1665
5RTOFF-30x2000x152-
DEG
2000
1075
2260
285
310
2142
2006
1878
5RTOFF-30x2100x152-
DEG
2100
1146
2362
285
310
2263
2119
1985
5RTOFF-30x2200x152-
DEG
2200
1185
2430
285
310
2336
2188
2049
5RTOFF-30x2400x152-
DEG
2400
1298
2668
285
310
2559
2397
2245
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD 1-ROLL FLAT RETURN W/DROPS
SERIES 25
1-ROLL FLAT RETURN W/DROPS
127DIA.
PART NUMBER
BW
F
G
HC
HD
SRD-25x400x127
400
484
494
634
100
SRD-25x450x127
450
536
546
686
100
SRD-25x500x127
500
586
596
736
100
SRD-25x600x127
600
688
698
838
100
SRD-25x750x127
750
840
850
990
100
SRD-25x900x127
900
994
1004
1144
100
SRD-25x1050x127
1050
1146
1156
1296
100
SRD-25x1200x127
1200
1298
1308
1448
100
SRD-25x1350x127
1350
1450
1460
1600
100
SRD-25x1500x127
1500
1602
1612
1752
100
SRD-25x1650x127
1650
1754
1764
1904
100
SRD-25x1800x127
1800
1908
1918
2058
100
SRD-25x2000x127
2000
2110
2120
2260
150
SRD-25x2100x127
2100
2212
2222
2362
150
SRD-25x2200x127
2200
2310
2320
2464
150
SRD-25x2400x127
2400
2518
2528
2668
240
SERIES 30
1-ROLL FLAT RETURN W/DROPS
152DIA.
PART NUMBER
BW
F
G
HC
HD
SRD-30x750x152
750
840
850
990
100
SRD-30x900x152
900
994
1009
1144
100
SRD-30x1050x152
1050
1146
1156
1296
100
SRD-30x1200x152
1200
1298
1308
1448
100
SRD-30x1350x152
1350
1450
1460
1600
100
SRD-30x1500x152
1500
1602
1612
1752
150
SRD-30x1650x152
1650
1754
1764
1904
150
SRD-30x1800x152
1800
1908
1918
2058
150
SRD-30x2000x152
2000
2110
2120
2260
240
SRD-30x2100x152
2100
2212
2222
2362
240
SRD-30x2200x152
2200
2310
2320
2430
240
SRD-30x2400x152
2400
2518
2528
2668
240
STANDARD 2-ROLL TUBULAR V-RETURN
STANDARD OFFSET INVERTED V-RETURN
SERIES 25
2-ROLL INV V-RETURN
127 DIA.
PART NUMBER
BW
F
HC
D
HD
ED
2RVROFF-25x600x127-DEG
600
300
838
119
100
636
2RVROFF-25x750x127-DEG
750
400
990
136
100
833
2RVROFF-25x900x127-DEG
900
475
1144
149
100
981
2RVROFF-25x1050x127-DEG
1050
560
1296
164
100
1148
2RVROFF-25x1200x127-DEG
1200
635
1448
177
100
1296
2RVROFF-25x1350x127-DEG
1350
720
1600
192
100
1463
2RVROFF-25x1500x127-DEG
1500
800
1752
206
100
1621
2RVROFF-25x1650x127-DEG
1650
885
1904
220
100
1788
2RVROFF-25x1800x127-DEG
1800
965
2058
234
100
1946
2RVROFF-25x2000x127-DEG
2000
1075
2260
253
150
1946
2RVROFF-25x2100x127-DEG
2100
1146
2362
266
150
2302
2RVROFF-25x2200x127-DEG
2200
1185
2430
272
150
2379
2RVROFF-25x2400x127-DEG
2400
1298
2668
292
240
2602
SERIES 30
2-ROLL IN-LINE V-RETURN
152DIA.
PART NUMBER
BW
F
HC
D
HD
ED
2RVRINL-30x750x152-DEG
750
400
990
148
100
833
2RVRINL-30x900x152-DEG
900
475
1144
161
100
981
2RVRINL-30x1050x152-DEG
1050
560
1296
186
100
1148
2RVRINL-30x1200x152-DEG
1200
635
1448
189
100
1296
2RVRINL-30x1350x152-DEG
1350
720
1600
204
100
1463
2RVRINL-30x1500x152-DEG
1500
800
1752
218
150
1621
2RVRINL-30x1650x152-DEG
1650
885
1904
232
150
1788
2RVRINL-30x1800x152-DEG
1800
965
2058
246
150
1946
2RVRINL-30x2000x152-DEG
2000
1075
2260
265
240
1946
2RVRINL-30x2100x152-DEG
2100
1146
2362
278
240
2302
2RVRINL-30x2200x152-DEG
2200
1185
2430
284
240
2379
2RVRINL-30x2400x152-DEG
2400
1298
2668
304
240
2602
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
STANDARD IN-LINE V-RETURN
SERIES 25
2-ROLL IN-LINE V-RETURN
127 DIA.
PART NUMBER
BW
F
HC
HD
ED
2RVRINL-25x600x127
600
300
838
0
611
2RVRINL-25x750x127
750
400
990
0
808
2RVRINL-25x900x127
900
475
1144
0
955
2RVRINL-25x1050x127
1050
560
1296
100
1123
2RVRINL-25x1200x127
1200
635
1448
100
1270
2RVRINL-25x1350x127
1350
720
1600
240
1438
2RVRINL-25x1500x127
1500
800
1752
240
1595
2RVRINL-25x1650x127
1650
885
1904
240
1763
2RVRINL-25x1800x127
1800
965
2058
240
1920
2RVRINL-25x2000x127
2000
1075
2260
310
2137
2RVRINL-25x2100x127
2100
1146
2362
310
2277
2RVRINL-25x2200x127
2200
1185
2430
310
2354
2RVRINL-25x2400x127
2400
1298
2668
310
2576
SERIES 30
2-ROLL IN-LINE V-RETURN
152DIA.
PART NUMBER
BW
F
HC
HD
ED
2RVRINL-30x750x152-DEG
750
400
990
240
808
2RVRINL-30x900x152-DEG
900
475
1144
240
955
2RVRINL-30x1050x152-DEG
1050
560
1296
240
1123
2RVRINL-30x1200x152-DEG
1200
635
1448
240
1270
2RVRINL-30x1350x152-DEG
1350
720
1600
240
1438
2RVRINL-30x1500x152-DEG
1500
800
1752
240
1595
2RVRINL-30x1650x152-DEG
1650
885
1904
310
1763
2RVRINL-30x1800x152-DEG
1800
965
2058
310
1920
2RVRINL-30x2000x152-DEG
2000
1075
2260
310
2137
2RVRINL-30x2100x152-DEG
2100
1146
2362
310
2277
2RVRINL-30x2200x152-DEG
2200
1185
2430
310
2354
2RVRINL-30x2400x152-DEG
2400
1298
2668
310
2576
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD TR
ACK
ING RETURN FR
AME
SERIES 25
1-ROLL TRACKING RETURN
127 DIA.
PART NUMBER
BW
F
HC
H
HD
1RTR-25x400x127
400
484
634
203
100
1RTR-25x450x127
450
536
686
203
100
1RTR-25x500x127
500
586
736
203
100
1RTR-25x600x127
600
688
838
203
100
1RTR-25x750x127
750
840
990
203
100
1RTR-25x900x127
900
994
1144
203
100
1RTR-25x1050x127
1050
1146
1296
203
100
1RTR-25x1200x127
1200
1298
1448
203
100
1RTR-25x1350x127
1350
1450
1600
203
100
1RTR-25x1500x127
1500
1602
1752
203
100
1RTR-25x1650x127
1650
1754
1904
203
100
1RTR-25x1800x127
1800
1908
2058
203
100
1RTR-25x2000x127
2000
2110
2260
203
150
1RTR-25x2100x127
2100
2212
2362
203
150
1RTR-25x2200x127
2200
2310
2464
203
150
1RTR-25x2400x127
2400
2518
2668
203
240
SERIES 30
1-ROLL TRACKING RETURN
152DIA.
PART NUMBER
BW
R
HC
HD
1RTR-30x750x152
750
840
990
100
1RTR-30x900x152
900
994
1144
100
1RTR-30x1050x152
1050
1146
1296
100
1RTR-30x1200x152
1200
1298
1448
100
1RTR-30x1350x152
1350
1450
1600
100
1RTR-30x1500x152
1500
1602
1752
150
1RTR-30x1650x152
1650
1754
1904
150
1RTR-30x1800x152
1800
1908
2058
150
1RTR-30x2000x152
2000
2110
2260
240
1RTR-30x2100x152
2100
2212
2362
240
1RTR-30x2200x152
2200
2310
2430
240
1RTR-30x2400x152
2400
2518
2668
240
STANDARD IMPAC
T IDLERS
SERIES 30
3-ROLL IMP.
152 DIA.
PART NUMBER
BW
F
G
3RIS-30x170x152
400
170
180
3RIS-30x190x152
450
190
200
3RIS-30x200x152
500
200
210
3RIS-30x240x152
600
240
250
3RIS-30x290x152
750
290
300
3RIS-30x340x152
900
340
350
3RIS-30x390x152
1050
390
400
3RIS-30x450x152
1200
450
460
3RIS-30x500x152
1350
500
510
3RIS-30x560x152
1500
560
570
3RIS-30x610x152
1650
610
620
3RIS-30x660x152
1800
660
670
3RIS-30x740x152
2000
740
750
3RIS-30x765x152
2100
765
775
3RIS-30x800x152
2200
800
810
3RIS-30x870x152
2400
870
880
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
STANDARD
5-ROLL IMPAC
T IDLERS
SERIES 25
5-ROLL IMP
133DIA.
PART NUMBER
BW
F
G
5RIS-25x240x133
1050
240
250
5RIS-25x270x133
1200
270
280
5RIS-25x300x133
1350
300
310
5RIS-25x340x133
1500
340
350
5RIS-25x370x133
1650
370
380
5RIS-25x400x133
1800
400
410
5RIS-25x450x133
2000
450
460
5RIS-25x485x133
2100
475
485
5RIS-25x490x133
2200
490
500
5RIS-25x536x133
2400
536
546
SERIES 30
5-ROLL IMP.
152 DIA.
PART NUMBER
BW
F
G
5RIS-30x240x152
1050
240
250
5RIS-30x270x152
1200
270
280
5RIS-30x300x152
1350
300
310
5RIS-30x340x152
1500
340
350
5RIS-30x370x152
1650
370
380
5RIS-30x400x152
1800
400
410
5RIS-30x450x152
2000
450
460
5RIS-30x475x152
2100
475
585
5RIS-30x490x152
2200
490
500
5RIS-30x536x152
2400
536
546
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.

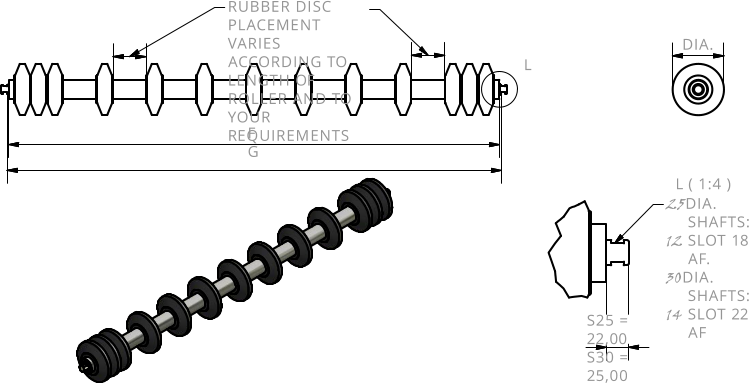

ST
AN
DARD RUBBER DISC
R
ET
UR
N
I
DL
ER
S
SERIES 25
1-ROLL RETURN DISC
133 DIA.
PART NUMBER
BW
F
G
RDR-25x484x133
400
484
494
RDR-25x536x133
450
536
546
RDR-25x586x133
500
586
596
RDR-25x688x133
600
688
698
RDR-25x840x133
750
840
850
RDR-25x994x133
900
994
1004
RDR-25x1146x133
1050
1146
1156
RDR-25x1298x133
1200
1298
1308
RDR-25x1450x133
1350
1450
1460
RDR-25x1602x133
1500
1602
1612
RDR-25x1754x133
1650
1754
1764
RDR-25x1908x133
1800
1908
1918
RDR-25x2110x133
2000
2110
2120
RDR-25x2212x133
2100
2212
2222
RDR-25x2310x133
2200
2310
2320
RDR-25x2518x133
2400
2518
2528
SERIES 30
1-ROLL RETURN DISC
152 DIA.
PART NUMBER
BW
F
G
RDR-30x840x152
750
840
850
RDR-30x994x152
900
994
1004
RDR-30x1146x152
1050
1146
1156
RDR-30x1298x152
1200
1298
1308
RDR-30x1450x152
1350
1450
1460
RDR-30x1602x152
1500
1602
1612
RDR-30x1754x152
1650
1754
1764
RDR-30x1908x152
1800
1908
1918
RDR-30x2110x152
2000
2110
2120
RDR-30x2212x152
2100
2212
2222
RDR-30x2310x152
2200
2310
2320
RDR-30x2518x152
2400
2518
2528
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
STANDARD IMPAC
T V-RETURN IDLERS
SERIES 25
2-ROLL V-RETURN DISC
133 DIA.
PART NUMBER
BW
F
G
RVRIS-25x300x133
600
300
310
RVRIS-25x400x133
750
400
410
RVRIS-25x475x133
900
475
485
RVRIS-25x560x133
1050
560
570
RVRIS-25x635x133
1200
635
645
RVRIS-25x720x133
1350
720
730
RVRIS-25x800x133
1500
800
810
RVRIS-25x885x133
1650
885
895
RVRIS-25x965x133
1800
965
975
RVRIS-25x1075x133
2000
1075
1085
RVRIS-25x1146x133
2100
1146
1156
RVRIS-25x1185x133
2200
1185
1195
RVRIS-25x1298x133
2400
1298
1308
SERIES 30
2-ROLL V-RETURN DISC
152 DIA.
PART NUMBER
BW
F
G
RVRIS-30x300x152
600
300
310
RVRIS-30x400x152
750
400
410
RVRIS-30x475x152
900
475
485
RVRIS-30x560x152
1050
560
570
RVRIS-30x635x152
1200
635
645
RVRIS-30x720x152
1350
720
730
RVRIS-30x800x152
1500
800
810
RVRIS-30x885x152
1650
885
895
RVRIS-30x965x152
1800
965
975
RVRIS-30x1075x152
2000
1075
1085
RVRIS-30x1146x152
2100
1146
1156
RVRIS-30x1185x152
2200
1185
1195
RVRIS-30x1298x152
2400
1298
1308
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
STANDARD IMPACT O
FFSET FRAMES
V ( 1 : 10
)
V
HC
F
1
50,00
40
0BW -
240
0BW
2 HO
LE
S = 1
8x
30mm
DI
A.
ED
TRAC
KIN
G IM
PACT
OFFSET F
RAME
S
ST
AN
DA
R
D 5-R
O
LL
TUBULAR I
MPA
CT
OF
FSE
T
FR
AM
E
STANDARD IMPACT FLAT
RETURN
W/DROP
S
SERIES 25
1-ROLL FLAT IMPACT RETURN W/DROPS
133 DIA
PART NUMBER
BW
F
G
HC
HD
IMPRD-30x450x133
450
536
546
686
150
IMPRD-30x500x133
500
586
596
736
150
IMPRD-30x600x133
600
688
698
838
150
IMPRD-30x750x133
750
840
850
990
150
IMPRD-30x900x133
900
994
1004
1144
150
IMPRD-30x1050x133
1050
1146
1156
1296
150
IMPRD-30x1200x133
1200
1298
1308
1448
150
IMPRD-30x1350x133
1350
1450
1460
1600
240
IMPRD-30x1500x133
1500
1602
1612
1752
240
IMPRD-30x1650x133
1650
1754
1764
1904
240
IMPRD-30x1800x133
1800
1908
1918
2058
240
IMPRD-30x2000x133
2000
2110
2120
2260
310
IMPRD-30x2100x133
2100
2212
2222
2362
310
IMPRD-30x2200x133
2200
2310
2320
2430
310
IMPRD-30x2400x133
2400
2518
2528
2668
310
SERIES 30
1-ROLL FLAT IMPACT RETURN W/DROPS
152DIA.
PART NUMBER
BW
F
G
HC
HD
IMPRD-30x750x152
750
840
850
990
240
IMPRD-30x900x152
900
994
1009
1144
240
IMPRD-30x1050x152
1050
1146
1156
1296
240
IMPRD-30x1200x152
1200
1298
1308
1448
240
IMPRD-30x1350x152
1350
1450
1460
1600
240
IMPRD-30x1500x152
1500
1602
1612
1752
240
IMPRD-30x1650x152
1650
1754
1764
1904
310
IMPRD-30x1800x152
1800
1908
1918
2058
310
IMPRD-30x2000x152
2000
2110
2120
2260
310
IMPRD-30x2100x152
2100
2212
2222
2362
310
IMPRD-30x2200x152
2200
2310
2320
2430
310
IMPRD-30x2400x152
2400
2518
2528
2668
310
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
ST
A
NDAR
D
IM
PACT
V-R
E
TUR
N O
FFSET F
RA
M
E
S
TANDARD IMPACT IN-LI
NE V-RETURN
SERIES 25
2-ROLL IMPACT INLINE V-RETURN 133DIA.
PART NUMBER
BW
F
HC
HD
ED
IMPINLVR-25x600x133-DEG
600
300
838
150
636
IMPINLVR-25x750x133-DEG
750
400
990
150
833
IMPINLVR-25x900x133-DEG
900
475
1144
150
981
IMPINLVR-25x1050x133-DEG
1050
560
1296
150
1148
IMPINLVR-25x1200x133-DEG
1200
635
1448
150
1296
IMPINLVR-25x1350x133-DEG
1350
720
1600
240
1463
IMPINLVR-25x1500x133-DEG
1500
800
1752
240
1621
IMPINLVR-25x1650x133-DEG
1650
885
1904
240
1788
IMPINLVR-25x1800x133-DEG
1800
965
2058
240
1946
SERIES 30
2-ROLL IMPACT INLINE V-RETURN 152DIA.
PART NUMBER
BW
F
HC
HD
ED
IMPINLVR-30x750x152-DEG
750
400
990
240
833
IMPINLVR-30x900x152-DEG
900
475
1144
240
981
IMPINLVR-30x1050x152-DEG
1050
560
1296
240
1148
IMPINLVR-30x1200x152-DEG
1200
635
1448
240
1296
IMPINLVR-30x1350x152-DEG
1350
720
1600
240
1463
IMPINLVR-30x1500x152-DEG
1500
800
1752
240
1621
IMPINLVR-30x1650x152-DEG
1650
885
1904
310
1788
IMPINLVR-30x1800x152-DEG
1800
965
2058
310
1946
IMPINLVR-30x2000x152-DEG
2000
1075
2260
310
1946
IMPINLVR-30x2100x152-DEG
2100
1146
2362
310
2302
IMPINLVR-30x2200x152-DEG
2200
1185
2430
310
2379
IMPINLVR-30x2400x152-DEG
2400
1298
2668
310
2602
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
SERIES 25 2-ROLL IMPACT OFFSET V-RETURN 133 DIA.
PART NUMBER
BW
F
HC
HD
ED
IMPTVR-25x600x133-DEG
600
300
838
150
636
IMPTVR-25x750x133-DEG
750
400
990
150
833
IMPTVR-25x900x133-DEG
900
475
1144
150
981
IMPTVR-25x1050x133-DEG
1050
560
1296
150
1148
IMPTVR-25x1200x133-DEG
1200
635
1448
150
1296
IMPTVR-25x1350x133-DEG
1350
720
1600
240
1463
IMPTVR-25x1500x133-DEG
1500
800
1752
240
1621
IMPTVR-25x1650x133-DEG
1650
885
1904
240
1788
IMPTVR-25x1800x133-DEG
1800
965
2058
240
1946
SERIES 30
2-ROLL IMPACT OFFSET V-RETURN 152DIA.
PART NUMBER
BW
F
HC
HD
ED
IMPTVR-30x750x152-DEG
750
400
990
240
833
IMPTVR-30x900x152-DEG
900
475
1144
240
981
IMPTVR-30x1050x152-DEG
1050
560
1296
240
1148
IMPTVR-30x1200x152-DEG
1200
635
1448
240
1296
IMPTVR-30x1350x152-DEG
1350
720
1600
240
1463
IMPTVR-30x1500x152-DEG
1500
800
1752
240
1621
IMPTVR-30x1650x152-DEG
1650
885
1904
310
1788
IMPTVR-30x1800x152-DEG
1800
965
2058
310
1946
IMPTVR-30x2000x152-DEG
2000
1075
2260
310
1946
IMPTVR-30x2100x152-DEG
2100
1146
2362
310
2302
IMPTVR-30x2200x152-DEG
2200
1185
2430
310
2379
IMPTVR-30x2400x152-DEG
2400
1298
2668
310
2602
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
SERIES 25 5-ROLL TUBULAR IMPACT FRAME 133 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
5RTIMPOFF-25x1050x133-DEG
1050
240
1296
206
150
1124
1051
983
5RTIMPOFF-25x1200x133-DEG
1200
270
1448
206
150
1269
1187
1111
5RTIMPOFF-25x1350x133-DEG
1350
300
1600
206
240
1415
1324
1239
5RTIMPOFF-25x1500x133-DEG
1500
340
1752
206
240
1609
1506
1409
5RTIMPOFF-25x1650x133-DEG
1650
370
1904
206
240
1754
1642
1537
5RTIMPOFF-25x1800x133-DEG
1800
400
2058
206
240
1900
1778
1665
SERIES 30
5-ROLL TUBULAR IMPACT OFFSET
152DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DE
ED 35 DEG
ED 45 DEG
5RTIMPOFF-30x1050x152-DEG
1050
560
1296
265
240
1124
1051
983
5RTIMPOFF-30x1200x152-DEG
1200
635
1448
265
240
1269
1187
1111
5RTIMPOFF-30x1350x152-DEG
1350
720
1600
265
240
1415
1324
1239
5RTIMPOFF-30x1500x152-DEG
1500
800
1752
285
240
1609
1506
1409
5RTIMPOFF-30x1650x152-DEG
1650
885
1904
285
310
1754
1642
1537
5RTIMPOFF-30x1800x152-DEG
1800
965
2058
285
310
1900
1778
1665
5RTIMPOFF-30x2000x152-DEG
2000
1075
2260
285
310
2142
2006
1878
5RTIMPOFF-30x2100x152-DEG
2100
1146
2362
285
310
2263
2119
1985
5RTIMPOFF-30x2200x152-DEG
2200
1185
2430
285
310
2336
2188
2049
5RTIMPOFF-30x2400x152-DEG
2400
1298
2668
285
310
2559
2397
2245
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
SERIES 25 3-ROLL TRACKING OFFSET FRAME 133 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RTIMPOFF-25x400x133-DEG
400
170
634
206
0
500
465
392
3RTIMPOFF-25x450x133-DEG
450
190
686
206
0
527
481
439
3RTIMPOFF-25x500x133-DEG
500
200
736
206
0
556
508
463
3RTIMPOFF-25x600x133-DEG
600
240
838
206
0
671
613
560
3RTIMPOFF-25x750x133-DEG
750
290
990
206
0
815
745
680
3RTIMPOFF-25x900x133-DEG
900
340
1144
206
0
959
877
801
3RTIMPOFF-25x1050x133-DEG
1050
390
1296
206
100
1103
1009
922
3RTIMPOFF-25x1200x133-DEG
1200
450
1448
206
100
1276
1167
1067
3RTIMPOFF-25x1350x133-DEG
1350
500
1600
206
100
1420
1299
1187
3RTIMPOFF-25x1500x133-DEG
1500
560
1752
206
240
1593
1458
1332
3RTIMPOFF-25x1650x133-DEG
1650
610
1904
206
240
1736
1590
1453
3RTIMPOFF-25x1800x133-DEG
1800
660
2058
206
240
1880
1722
1574
3RTIMPOFF-25x2000x133-DEG
2000
740
2260
206
310
2111
1933
1767
3RTIMPOFF-25x2100x133-DEG
2100
765
2362
206
310
2183
1999
1827
3RTIMPOFF-25x2200x133-DEG
2200
800
2464
206
310
2284
2091
1912
3RTIMPOFF-25x2400x133-DEG
2400
870
2668
206
310
2485
2276
2081
SERIES 25
2-ROLL TUBULAR V-RETURN
127 DIA.
PART NUMBER
BW
F
HC
HD
ED
2RTVR-25x600x127-DEG
600
300
838
100
636
2RTVR-25x750x127-DEG
750
400
990
100
833
2RTVR-25x900x127-DEG
900
475
1144
100
981
2RTVR-25x1050x127-DEG
1050
560
1296
100
1148
2RTVR-25x1200x127-DEG
1200
635
1448
100
1296
2RTVR-25x1350x127-DEG
1350
720
1600
100
1463
2RTVR-25x1500x127-DEG
1500
800
1752
100
1621
2RTVR-25x1650x127-DEG
1650
885
1904
100
1788
2RTVR-25x1800x127-DEG
1800
965
2058
100
1946
2RTVR-25x2000x127-DEG
2000
1075
2260
150
1946
2RTVR-25x2100x127-DEG
2100
1146
2362
150
2302
2RTVR-25x2200x127-DEG
2200
1185
2464
150
2379
2RTVR-25x2400x127-DEG
2400
1298
2668
240
2602
SERIES 30
2-ROLL TUBULAR V-RETURN
152DIA.
PART NUMBER
BW
F
HC
HD
ED
2RTVR-30x750x152-DEG
750
400
990
100
833
2RTVR-30x900x152-DEG
900
475
1144
100
981
2RTVR-30x1050x152-DEG
1050
560
1296
100
1148
2RTVR-30x1200x152-DEG
1200
635
1448
100
1296
2RTVR-30x1350x152-DEG
1350
720
1600
100
1463
2RTVR-30x1500x152-DEG
1500
800
1752
150
1621
2RTVR-30x1650x152-DEG
1650
885
1904
150
1788
2RTVR-30x1800x152-DEG
1800
965
2058
150
1946
2RTVR-30x2000x152-DEG
2000
1075
2260
240
1946
2RTVR-30x2100x152-DEG
2100
1146
2362
240
2302
2RTVR-30x2200x152-DEG
2200
1185
2430
240
2379
2RTVR-30x2400x152-DEG
2400
1298
2668
240
2602
SERIES 25
3-ROLL IMP.
133 DIA.
PART NUMBER
BW
F
G
3RIS-25x170x133
400
170
180
3RIS-25x190x133
450
190
200
3RIS-25x200x133
500
200
210
3RIS-25x240x133
600
240
250
3RIS-25x290x133
750
290
300
3RIS-25x340x133
900
340
350
3RIS-25x390x133
1050
390
400
3RIS-25x450x133
1200
450
460
3RIS-25x500x133
1350
500
510
3RIS-25x560x133
1500
560
570
3RIS-25x610x133
1650
610
620
3RIS-25x660x133
1800
660
670
3RIS-25x740x133
2000
740
750
3RIS-25x765x133
2100
765
775
3RIS-25x800x133
2200
800
810
3RIS-25x870x133
2400
870
880
SERIES 25
3-ROLL IMP OFFSET
133 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RIMPOFF-25x400x133-DEG
400
170
634
206
150
500
465
392
3RIMPOFF-25x450x133-DEG
450
190
686
206
150
527
481
439
3RIMPOFF-25x500x133-DEG
500
200
736
206
150
556
508
463
3RIMPOFF-25x600x133-DEG
600
240
838
206
150
671
613
560
3RIMPOFF-25x750x133-DEG
750
290
990
206
150
815
745
680
3RIMPOFF-25x900x133-DEG
900
340
1144
206
150
959
877
801
3RIMPOFF-25x1050x133-DEG
1050
390
1296
206
150
1103
1009
922
3RIMPOFF-25x1200x133-DEG
1200
450
1448
206
150
1276
1167
1067
3RIMPOFF-25x1350x133-DEG
1350
500
1600
206
240
1420
1299
1187
3RIMPOFF-25x1500x133-DEG
1500
560
1752
206
240
1593
1458
1332
3RIMPOFF-25x1650x133-DEG
1650
610
1904
206
240
1736
1590
1453
3RIMPOFF-25x1800x133-DEG
1800
660
2058
206
240
1880
1722
1574
SERIES 30
3-ROLL IMP OFFSET
152DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RIMPOFF-30x750x152-DEG
750
290
990
265
240
815
745
680
3RIMPOFF-30x900x152-DEG
900
340
1144
265
240
959
877
801
3RIMPOFF-30x1050x152-DEG
1050
390
1296
265
240
1103
1009
922
3RIMPOFF-30x1200x152-DEG
1200
450
1448
265
240
1276
1167
1067
3RIMPOFF-30x1350x152-DEG
1350
500
1600
265
240
1420
1299
1187
3RIMPOFF-30x1500x152-DEG
1500
560
1752
285
240
1593
1458
1332
3RIMPOFF-30x1650x152-DEG
1650
610
1904
285
310
1736
1590
1453
3RIMPOFF-30x1800x152-DEG
1800
660
2058
285
310
1880
1722
1574
3RIMPOFF-30x2000x152-DEG
2000
740
2260
285
310
2111
1933
1767
3RIMPOFF-30x2100x152-DEG
2100
765
2362
285
310
2183
1999
1827
3RIMPOFF-30x2200x152-DEG
2200
800
2430
285
310
2284
2091
1912
3RIMPOFF-30x2400x152-DEG
2400
870
2668
285
310
2485
2276
2081
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
SERIES 30 3-ROLL TRACKING OFFSET FRAME 152 DIA.
PART NUMBER
BW
F
HC
H
HD
ED 20 DEG
ED 35 DEG
ED 45 DEG
3RTIMPOFF-30x750x152-DEG
750
290
990
265
240
815
745
680
3RTIMPOFF-30x900x152-DEG
900
340
1144
265
240
959
877
801
3RTIMPOFF-30x1050x152-DEG
1050
390
1296
265
240
1103
1009
922
3RTIMPOFF-30x1200x152-DEG
1200
450
1448
265
240
1276
1167
1067
3RTIMPOFF-30x1350x152-DEG
1350
500
1600
265
240
1420
1299
1187
3RTIMPOFF-30x1500x152-DEG
1500
560
1752
285
240
1593
1458
1332
3RTIMPOFF-30x1650x152-DEG
1650
610
1904
285
310
1736
1590
1453
3RTIMPOFF-30x1800x152-DEG
1800
660
2058
285
310
1880
1722
1574
3RTIMPOFF-30x2000x152-DEG
2000
740
2260
285
310
2111
1933
1767
3RTIMPOFF-30x2100x152-DEG
2100
765
2362
285
310
2183
1999
1827
3RTIMPOFF-30x2200x152-DEG
2200
800
2430
285
310
2284
2091
1912
3RTIMPOFF-30x2400x152-DEG
2400
870
2668
285
310
2485
2276
2081
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
INDUSTRY STANDARDS & COMPLIANCE
SANS 1313 | SANS 1173:2013 | SANS 971:2013 | SANS 968:2013 | SANS 1366:2013
Kangala Conveyor are stockists and suppliers of all types of new steel and HOPE
conveyor idlers and conveyor pulleys.
We hold an extensive range of idler frames and rolls in stock, which are all
manufactured to SABS 1313 specifications and include all the standard sizes of
troughing, return, impact and training idlers. We also manufacture special nonÍ
standard sizes if so required by our customers.
We are also able to supply anti-seize and anti-runback idler rolls as well as
underground conveyor structure.
Roll diameters offered; 50/57/76/101/127/152 Shaft series offered;
SER10/20/25/30/35/40
STANDARD IDLERS
SERIES 25 | 3-ROLL FRAMES |
127 DIA.
PART NUMBER
BW
3RS-25x170x127
400
3RS-25x190x127
450
3RS-25x200x127
500
3RS-25x240x127
600
3RS-25x290x127
750
3RS-25x340x127
900
3RS-25x390x127
1050
3RS-25x450x127
1200
3RS-25x500x127
1350
3RS-25x560x127
1500
3RS-25x610x127
1650
3RS-25x660x127
1800
3RS-25x740x127
2000
3RS-25x765x127
2100
3RS-25x800x127
2200
3RS-25x870x127
2400
SERIES 30 | 3 ROLL FRAMES | 152DIA.
PART NUMBER
BW
3RS-30x290x152
750
3RS-30x340x152
900
3RS-30x390x152
1050
3RS-30x450x152
1200
3RS-30x500x152
1350
3RS-30x560x152
1500
3RS-30x610x152
1650
3RS-30x660x152
1800
3RS-30x740x152
2000
3RS-30x765x152
2100
3RS-30x800x152
2200
3RS-30x870x152
2400
STANDARD 5-ROLL IDLERS
PART NUMBER
BW
5RS-25x240x127
1050
5RS-25x270x127
1200
5RS-25x300x127
1350
5RS-25x340x127
1500
5RS-25x370x127
1650
5RS-25x400x127
1800
5RS-25x450x127
2000
5RS-25x475x127
2100
5RS-25x490x127
2200
5RS-25x536x127
2400
SERIES 30
PART NUMBER
BW
5RS-30x240x152
1050
5RS-30x270x152
1200
5RS-30x300x152
1350
5RS-30x340x152
1500
5RS-30x370x152
1650
5RS-30x400x152
1800
5RS-30x450x152
2000
5RS-30x475x152
2100
5RS-30x490x152
2200
5RS-30x536x152
2400
STANDARD 1-ROLL FLAT RETURN IDLERS
SERIES 25
1-ROLL RETURN
127 DIA.
PART NUMBER
BW
FRS-25x484x127
400
FRS-25x536x127
450
FRS-25x586x127
500
FRS-25x688x127
600
FRS-25x840x127
750
FRS-25x994x127
900
FRS-25x1146x127
1050
FRS-25x1298x127
1200
FRS-25x1450x127
1350
FRS-25x1602x127
1500
FRS-25x1754x127
1650
FRS-25x1908x127
1800
FRS-25x2110x127
2000
FRS-25x2212x127
2100
FRS-25x2310x127
2200
FRS-25x2518x127
2400
PART NUMBER
BW
2RVS-30x840x152
750
2RVS-30x994x152
900
2RVS-30x1146x152
1050
2RVS-30x1298x152
1200
2RVS-30x1450x152
1350
2RVS-30x1602x152
1500
2RVS-30x1754x152
1650
2RVS-30x1908x152
1800
2RVS-30x2110x152
2000
2RVS-30x2212x152
2100
2RVS-30x2310x152
2200
2RVS-30x2518x152
2400
STANDARD 2-ROLL V RETURN IDLERS
SERIES 25
2-ROLL V- RETURNS
PART NUMBER
BW
2RVS-25x300x127
600
2RVS-25x400x127
750
2RVS-25x475x127
900
2RVS-25x560x127
1050
2RVS-25x635x127
1200
2RVS-25x720x127
1350
2RVS-25x800x127
1500
2RVS-25x885x127
1650
2RVS-25x965x127
1800
2RVS-25x1075x127
2000
2RVS-25x1146x127
2100
2RVS-25x1185x127
2200
2RVS-25x1298x127
2400
SERIES 30
2-ROLL V- RETURNS
PART NUMBER
BW
2RVS-30x400x152
750
2RVS-30x475x152
900
2RVS-30x560x152
1050
2RVS-30x635x152
1200
2RVS-30x720x152
1350
2RVS-30x800x152
1500
2RVS-30x885x152
1650
2RVS-30x965x152
1800
2RVS-30x1075x152
2000
2RVS-30x1146x152
2100
2RVS-30x1185x152
2200
2RVS-30x400x152
2400
STANDARD 3-ROLL OFFSET FRAMES
SERIES 25
3-ROLL OFFSET
127DIA.
PART NUMBER
BW
F
3ROFF-25x400x127-DEG
400
170
3ROFF-25x450x127-DEG
450
190
3ROFF-25x500x127-DEG
500
200
3ROFF-25x600x127-DEG
600
240
3ROFF-25x750x127-DEG
750
290
3ROFF-25x900x127-DEG
900
340
3ROFF-25x1050x127-DEG
1050
390
3ROFF-25x1200x127-DEG
1200
450
3ROFF-25x1350x127-DEG
1350
500
3ROFF-25x1500x127-DEG
1500
560
3ROFF-25x1650x127-DEG
1650
610
3ROFF-25x1800x127-DEG
1800
660
3ROFF-25x2000x127-DEG
2000
740
3ROFF-25x2100x127-DEG
2100
765
3ROFF-25x2200x127-DEG
2200
800
3ROFF-25x2400x127-DEG
2400
870
SERIES 30 3-ROLL OFFSET 152 DIA.
PART NUMBER
BW
F
3ROFF-30x750x152-DEG
750
290
3ROFF-30x900x152-DEG
900
340
3ROFF-30x1050x152-DEG
1050
390
3ROFF-30x1200x152-DEG
1200
450
3ROFF-30x1350x152-DEG
1350
500
3ROFF-30x1500x152-DEG
1500
560
3ROFF-30x1650x152-DEG
1650
610
3ROFF-30x1800x152-DEG
1800
660
3ROFF-30x2000x152-DEG
2000
740
3ROFF-30x2100x152-DEG
2100
765
3ROFF-30x2200x152-DEG
2200
800
3ROFF-30x2400x152-DEG
2400
870
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD TRACKING OFFSET FRAME
SERIES 25 3-ROLL TRACKING ANGULAR 127 DIA.
PART NUMBER
BW
F
3RTOFF-25x400x127-DEG
400
170
3RTOFF-25x450x127-DEG
450
190
3RTOFF-25x500x127-DEG
500
200
3RTOFF-25x600x127-DEG
600
240
3RTOFF-25x750x127-DEG
750
290
3RTOFF-25x900x127-DEG
900
340
3RTOFF-25x1050x127-DEG
1050
390
3RTOFF-25x1200x127-DEG
1200
450
3RTOFF-25x1350x127-DEG
1350
500
3RTOFF-25x1500x127-DEG
1500
560
3RTOFF-25x1650x127-DEG
1650
610
3RTOFF-25x1800x127-DEG
1800
660
3RTOFF-25x2000x127-DEG
2000
740
3RTOFF-25x2100x127-DEG
2100
765
3RTOFF-25x2200x127-DEG
2200
800
3RTOFF-25x2400x127-DEG
2400
870
SERIES 30 3-ROLL TRACKING ANGULAR 152 DIA.
PART NUMBER
BW
F
3RINL-30x750x152-DEG
750
290
3RINL-30x900x152-DEG
900
340
3RINL-30x1050x152-DEG
1050
390
3RINL-30x1200x152-DEG
1200
450
3RINL-30x1350x152-DEG
1350
500
3RINL-30x1500x152-DEG
1500
560
3RINL-30x1650x152-DEG
1650
610
3RINL-30x1800x152-DEG
1800
660
3RINL-30x2000x152-DEG
2000
740
3RINL-30x2100x152-DEG
2100
765
3RINL-30x2200x152-DEG
2200
800
3RINL-30x2400x152-DEG
2400
870
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD INLINE TROUGHING FRAME
SERIES 25
3-ROLL INLINE FRAME
127 DIA.
PART NUMBER
BW
F
3RINL-25x400x127-DEG
400
170
3RINL-25x450x127-DEG
450
190
3RINL-25x500x127-DEG
500
200
3RINL-25x600x127-DEG
600
240
3RINL-25x750x127-DEG
750
290
3RINL-25x900x127-DEG
900
340
3RINL-25x1050x127-DEG
1050
390
3RINL-25x1200x127-DEG
1200
450
3RINL-25x1350x127-DEG
1350
500
3RINL-25x1500x127-DEG
1500
560
3RINL-25x1650x127-DEG
1650
610
3RINL-25x1800x127-DEG
1800
660
3RINL-25x2000x127-DEG
2000
740
3RINL-25x2100x127-DEG
2100
765
3RINL-25x2200x127-DEG
2200
800
3RINL-25x2400x127-DEG
2400
870
SERIES 30
3-ROLL INLINE FRAME
152 DIA.
PART NUMBER
BW
F
3RINL-30x750x152-DEG
750
290
3RINL-30x900x152-DEG
900
340
3RINL-30x1050x152-DEG
1050
390
3RINL-30x1200x152-DEG
1200
450
3RINL-30x1350x152-DEG
1350
500
3RINL-30x1500x152-DEG
1500
560
3RINL-30x1650x152-DEG
1650
610
3RINL-30x1800x152-DEG
1800
660
3RINL-30x2000x152-DEG
2000
740
3RINL-30x2100x152-DEG
2100
765
3RINL-30x2200x152-DEG
2200
800
3RINL-30x2400x152-DEG
2400
870
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
SEIRES 25 3-ROLL INLINE SELF ALIGNING 127 DIA.
PART NUMBER
BW
F
3RSAINL-25x400x127-DEG
400
170
3RSAINL-25x450x127-DEG
450
190
3RSAINL-25x500x127-DEG
500
200
3RSAINL-25x600x127-DEG
600
240
3RSAINL-25x750x127-DEG
750
290
3RSAINL-25x900x127-DEG
900
340
3RSAINL-25x1050x127-DEG
1050
390
3RSAINL-25x1200x127-DEG
1200
450
3RSAINL-25x1350x127-DEG
1350
500
3RSAINL-25x1500x127-DEG
1500
560
3RSAINL-25x1650x127-DEG
1650
610
3RSAINL-25x1800x127-DEG
1800
660
3RSAINL-25x2000x127-DEG
2000
740
3RSAINL-25x2100x127-DEG
2100
765
3RSAINL-25x2200x127-DEG
2200
800
3RSAINL-25x2400x127-DEG
2400
870
SEIRES 30 3-ROLL INLINE SELF ALIGNING 152 DIA.
PART NUMBER
BW
F
3RSAINL-30x750x152-DEG
750
290
3RSAINL-30x900x152-DEG
900
340
3RSAINL-30x1050x152-DEG
1050
390
3RSAINL-30x1200x152-DEG
1200
450
3RSAINL-30x1350x152-DEG
1350
500
3RSAINL-30x1500x152-DEG
1500
560
3RSAINL-30x1650x152-DEG
1650
610
3RSAINL-30x1800x152-DEG
1800
660
3RSAINL-30x2000x152-DEG
2000
740
3RSAINL-30x2100x152-DEG
2100
765
3RSAINL-30x2200x152-DEG
2200
800
3RSAINL-30x2400x152-DEG
2400
870
STANDARD INLINE SELF-ALIGNING FRAME
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD OFFSET PICKING FRAME
SERIES 25 3-ROLL OFFSET PICKING FRAME 127 DIA.
PART NUMBER
BW
3RPICKOFF-25x750x127
750
3RPICKOFF-25x900x127
900
3RPICKOFF-25x1050x127
1050
3RPICKOFF-25x1200x127
1200
3RPICKOFF-25x1350x127
1350
3RPICKOFF-25x1500x127
1500
3RPICKOFF-25x1650x127
1650
3RPICKOFF-25x1800x127
1800
3RPICKOFF-25x2000x127
2000
3RPICKOFF-25x2100x127
2100
3RPICKOFF-25x2200x127
2200
3RPICKOFF-25x2400x127
2400
SERIES 30 3-ROLL OFFSET PICKING FRAME 152 DIA.
PART NUMBER
BW
5RTOFF-30x750x152-DEG
750
5RTOFF-30x900x152-DEG
900
5RTOFF-30x1050x152-DEG
1050
5RTOFF-30x1200x152-DEG
1200
5RTOFF-30x1350x152-DEG
1350
5RTOFF-30x1500x152-DEG
1500
5RTOFF-30x1650x152-DEG
1650
5RTOFF-30x1800x152-DEG
1800
5RTOFF-30x2000x152-DEG
2000
5RTOFF-30x2100x152-DEG
2100
5RTOFF-30x2200x152-DEG
2200
5RTOFF-30x2400x152-DEG
2400
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD 5-ROLL TUBULAR OFFSET FRAME
SERIES 25
5-ROLL TUBULAR OFFSET
127 DIA.
PART NUMBER
BW
F
5RTOFF-25x1050x127-DEG
1050
240
5RTOFF-25x1200x127-DEG
1200
270
5RTOFF-25x1350x127-DEG
1350
300
5RTOFF-25x1500x127-DEG
1500
340
5RTOFF-25x1650x127-DEG
1650
370
5RTOFF-25x1800x127-DEG
1800
400
5RTOFF-25x2000x127-DEG
2000
450
5RTOFF-25x2100x127-DEG
2100
475
5RTOFF-25x2200x127-DEG
2200
490
5RTOFF-25x2400x127-DEG
2400
536
SERIES 30
5-ROLL TUBULAR OFFSET
152 DIA.
PART NUMBER
BW
F
HC
5RTOFF-30x1050x152-
DEG
1050
560
1296
5RTOFF-30x1200x152-
DEG
1200
635
1448
5RTOFF-30x1350x152-
DEG
1350
720
1600
5RTOFF-30x1500x152-
DEG
1500
800
1752
5RTOFF-30x1650x152-
DEG
1650
885
1904
5RTOFF-30x1800x152-
DEG
1800
965
2058
5RTOFF-30x2000x152-
DEG
2000
1075
2260
5RTOFF-30x2100x152-
DEG
2100
1146
2362
5RTOFF-30x2200x152-
DEG
2200
1185
2430
5RTOFF-30x2400x152-
DEG
2400
1298
2668
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD 1-ROLL FLAT RETURN W/DROPS
SERIES 25
1-ROLL FLAT RETURN W/DROPS
127DIA.
PART NUMBER
BW
SRD-25x400x127
400
SRD-25x450x127
450
SRD-25x500x127
500
SRD-25x600x127
600
SRD-25x750x127
750
SRD-25x900x127
900
SRD-25x1050x127
1050
SRD-25x1200x127
1200
SRD-25x1350x127
1350
SRD-25x1500x127
1500
SRD-25x1650x127
1650
SRD-25x1800x127
1800
SRD-25x2000x127
2000
SRD-25x2100x127
2100
SRD-25x2200x127
2200
SRD-25x2400x127
2400
SERIES 30
1-ROLL FLAT RETURN W/DROPS
152DIA.
PART NUMBER
BW
SRD-30x750x152
750
SRD-30x900x152
900
SRD-30x1050x152
1050
SRD-30x1200x152
1200
SRD-30x1350x152
1350
SRD-30x1500x152
1500
SRD-30x1650x152
1650
SRD-30x1800x152
1800
SRD-30x2000x152
2000
SRD-30x2100x152
2100
SRD-30x2200x152
2200
SRD-30x2400x152
2400
STANDARD 2-ROLL TUBULAR V-RETURN
STANDARD OFFSET INVERTED V-RETURN
SERIES 25
2-ROLL INV V-RETURN
127 DIA.
PART NUMBER
BW
2RVROFF-25x600x127-DEG
600
2RVROFF-25x750x127-DEG
750
2RVROFF-25x900x127-DEG
900
2RVROFF-25x1050x127-DEG
1050
2RVROFF-25x1200x127-DEG
1200
2RVROFF-25x1350x127-DEG
1350
2RVROFF-25x1500x127-DEG
1500
2RVROFF-25x1650x127-DEG
1650
2RVROFF-25x1800x127-DEG
1800
2RVROFF-25x2000x127-DEG
2000
2RVROFF-25x2100x127-DEG
2100
2RVROFF-25x2200x127-DEG
2200
2RVROFF-25x2400x127-DEG
2400
SERIES 30
2-ROLL IN-LINE V-RETURN
152DIA.
PART NUMBER
BW
2RVRINL-30x750x152-DEG
750
2RVRINL-30x900x152-DEG
900
2RVRINL-30x1050x152-DEG
1050
2RVRINL-30x1200x152-DEG
1200
2RVRINL-30x1350x152-DEG
1350
2RVRINL-30x1500x152-DEG
1500
2RVRINL-30x1650x152-DEG
1650
2RVRINL-30x1800x152-DEG
1800
2RVRINL-30x2000x152-DEG
2000
2RVRINL-30x2100x152-DEG
2100
2RVRINL-30x2200x152-DEG
2200
2RVRINL-30x2400x152-DEG
2400
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
STANDARD IN-LINE V-RETURN
SERIES 25
2-ROLL IN-LINE V-RETURN
127 DIA.
PART NUMBER
BW
2RVRINL-25x600x127
600
2RVRINL-25x750x127
750
2RVRINL-25x900x127
900
2RVRINL-25x1050x127
1050
2RVRINL-25x1200x127
1200
2RVRINL-25x1350x127
1350
2RVRINL-25x1500x127
1500
2RVRINL-25x1650x127
1650
2RVRINL-25x1800x127
1800
2RVRINL-25x2000x127
2000
2RVRINL-25x2100x127
2100
2RVRINL-25x2200x127
2200
2RVRINL-25x2400x127
2400
SERIES 30
2-ROLL IN-LINE V-RETURN
152DIA.
PART NUMBER
BW
2RVRINL-30x750x152-DEG
750
2RVRINL-30x900x152-DEG
900
2RVRINL-30x1050x152-DEG
1050
2RVRINL-30x1200x152-DEG
1200
2RVRINL-30x1350x152-DEG
1350
2RVRINL-30x1500x152-DEG
1500
2RVRINL-30x1650x152-DEG
1650
2RVRINL-30x1800x152-DEG
1800
2RVRINL-30x2000x152-DEG
2000
2RVRINL-30x2100x152-DEG
2100
2RVRINL-30x2200x152-DEG
2200
2RVRINL-30x2400x152-DEG
2400
*REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
**SERIES 30 FRAMES 18x30mm HOLES
STANDARD TR
ACK
ING RETURN FR
AME
SERIES 25
1-ROLL TRACKING RETURN
127 DIA.
PART NUMBER
BW
1RTR-25x400x127
400
1RTR-25x450x127
450
1RTR-25x500x127
500
1RTR-25x600x127
600
1RTR-25x750x127
750
1RTR-25x900x127
900
1RTR-25x1050x127
1050
1RTR-25x1200x127
1200
1RTR-25x1350x127
1350
1RTR-25x1500x127
1500
1RTR-25x1650x127
1650
1RTR-25x1800x127
1800
1RTR-25x2000x127
2000
1RTR-25x2100x127
2100
1RTR-25x2200x127
2200
1RTR-25x2400x127
2400
SERIES 30
1-ROLL TRACKING RETURN
152DIA.
PART NUMBER
BW
1RTR-30x750x152
750
1RTR-30x900x152
900
1RTR-30x1050x152
1050
1RTR-30x1200x152
1200
1RTR-30x1350x152
1350
1RTR-30x1500x152
1500
1RTR-30x1650x152
1650
1RTR-30x1800x152
1800
1RTR-30x2000x152
2000
1RTR-30x2100x152
2100
1RTR-30x2200x152
2200
1RTR-30x2400x152
2400
STANDARD IMPAC
T IDLERS
SERIES 30
3-ROLL IMP.
152 DIA.
PART NUMBER
BW
3RIS-30x170x152
400
3RIS-30x190x152
450
3RIS-30x200x152
500
3RIS-30x240x152
600
3RIS-30x290x152
750
3RIS-30x340x152
900
3RIS-30x390x152
1050
3RIS-30x450x152
1200
3RIS-30x500x152
1350
3RIS-30x560x152
1500
3RIS-30x610x152
1650
3RIS-30x660x152
1800
3RIS-30x740x152
2000
3RIS-30x765x152
2100
3RIS-30x800x152
2200
3RIS-30x870x152
2400
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
STANDARD
5-ROLL IMPAC
T IDLERS
SERIES 25
5-ROLL IMP
133DIA.
PART NUMBER
BW
5RIS-25x240x133
1050
5RIS-25x270x133
1200
5RIS-25x300x133
1350
5RIS-25x340x133
1500
5RIS-25x370x133
1650
5RIS-25x400x133
1800
5RIS-25x450x133
2000
5RIS-25x485x133
2100
5RIS-25x490x133
2200
5RIS-25x536x133
2400
SERIES 30
5-ROLL IMP.
152 DIA.
PART NUMBER
BW
5RIS-30x240x152
1050
5RIS-30x270x152
1200
5RIS-30x300x152
1350
5RIS-30x340x152
1500
5RIS-30x370x152
1650
5RIS-30x400x152
1800
5RIS-30x450x152
2000
5RIS-30x475x152
2100
5RIS-30x490x152
2200
5RIS-30x536x152
2400
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
ST
AN
DARD RUBBER DISC
R
ET
UR
N
I
DL
ER
S
SERIES 25
1-ROLL RETURN DISC
PART NUMBER
BW
RDR-25x484x133
400
RDR-25x536x133
450
RDR-25x586x133
500
RDR-25x688x133
600
RDR-25x840x133
750
RDR-25x994x133
900
RDR-25x1146x133
1050
RDR-25x1298x133
1200
RDR-25x1450x133
1350
RDR-25x1602x133
1500
RDR-25x1754x133
1650
RDR-25x1908x133
1800
RDR-25x2110x133
2000
RDR-25x2212x133
2100
RDR-25x2310x133
2200
RDR-25x2518x133
2400
SERIES 30
1-ROLL RETURN DISC
PART NUMBER
BW
RDR-30x840x152
750
RDR-30x994x152
900
RDR-30x1146x152
1050
RDR-30x1298x152
1200
RDR-30x1450x152
1350
RDR-30x1602x152
1500
RDR-30x1754x152
1650
RDR-30x1908x152
1800
RDR-30x2110x152
2000
RDR-30x2212x152
2100
RDR-30x2310x152
2200
RDR-30x2518x152
2400
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
STANDARD IMPAC
T V-RETURN IDLERS
SERIES 25
2-ROLL V-RETURN DISC
PART NUMBER
BW
RVRIS-25x300x133
600
RVRIS-25x400x133
750
RVRIS-25x475x133
900
RVRIS-25x560x133
1050
RVRIS-25x635x133
1200
RVRIS-25x720x133
1350
RVRIS-25x800x133
1500
RVRIS-25x885x133
1650
RVRIS-25x965x133
1800
RVRIS-25x1075x133
2000
RVRIS-25x1146x133
2100
RVRIS-25x1185x133
2200
RVRIS-25x1298x133
2400
SERIES 30
2-ROLL V-RETURN DISC
PART NUMBER
BW
RVRIS-30x300x152
600
RVRIS-30x400x152
750
RVRIS-30x475x152
900
RVRIS-30x560x152
1050
RVRIS-30x635x152
1200
RVRIS-30x720x152
1350
RVRIS-30x800x152
1500
RVRIS-30x885x152
1650
RVRIS-30x965x152
1800
RVRIS-30x1075x152
2000
RVRIS-30x1146x152
2100
RVRIS-30x1185x152
2200
RVRIS-30x1298x152
2400
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
STANDARD IMPACT O
FFSET FRAMES
V ( 1 : 10
)
HC
F
1
50,00
DI
A.
ED
TRAC
KIN
G IM
PACT
OFFSET F
RAME
S
ST
AN
DA
R
D 5-R
O
LL
TUBULAR I
MPA
CT
OF
FSE
T
FR
AM
E
STANDARD IMPACT FLAT
RETURN
W/DROP
S
SERIES 25
1-ROLL FLAT IMPACT RETURN W/DROPS
133 DIA
PART NUMBER
BW
IMPRD-30x450x133
450
IMPRD-30x500x133
500
IMPRD-30x600x133
600
IMPRD-30x750x133
750
IMPRD-30x900x133
900
IMPRD-30x1050x133
1050
IMPRD-30x1200x133
1200
IMPRD-30x1350x133
1350
IMPRD-30x1500x133
1500
IMPRD-30x1650x133
1650
IMPRD-30x1800x133
1800
IMPRD-30x2000x133
2000
IMPRD-30x2100x133
2100
IMPRD-30x2200x133
2200
IMPRD-30x2400x133
2400
SERIES 30
1-ROLL FLAT IMPACT RETURN W/DROPS
152DIA.
PART NUMBER
BW
IMPRD-30x750x152
750
IMPRD-30x900x152
900
IMPRD-30x1050x152
1050
IMPRD-30x1200x152
1200
IMPRD-30x1350x152
1350
IMPRD-30x1500x152
1500
IMPRD-30x1650x152
1650
IMPRD-30x1800x152
1800
IMPRD-30x2000x152
2000
IMPRD-30x2100x152
2100
IMPRD-30x2200x152
2200
IMPRD-30x2400x152
2400
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
ST
A
NDAR
D
IM
PACT
V-R
E
TUR
N O
FFSET F
RA
M
E
S
TANDARD IMPACT IN-LI
NE V-RETURN
SERIES 25
2-ROLL IMPACT INLINE V-RETURN 133DIA.
PART NUMBER
IMPINLVR-25x600x133-DEG
IMPINLVR-25x750x133-DEG
IMPINLVR-25x900x133-DEG
IMPINLVR-25x1050x133-DEG
IMPINLVR-25x1200x133-DEG
IMPINLVR-25x1350x133-DEG
IMPINLVR-25x1500x133-DEG
IMPINLVR-25x1650x133-DEG
IMPINLVR-25x1800x133-DEG
SERIES 30
2-ROLL IMPACT INLINE V-RETURN 152DIA.
PART NUMBER
IMPINLVR-30x750x152-DEG
IMPINLVR-30x900x152-DEG
IMPINLVR-30x1050x152-DEG
IMPINLVR-30x1200x152-DEG
IMPINLVR-30x1350x152-DEG
IMPINLVR-30x1500x152-DEG
IMPINLVR-30x1650x152-DEG
IMPINLVR-30x1800x152-DEG
IMPINLVR-30x2000x152-DEG
IMPINLVR-30x2100x152-DEG
IMPINLVR-30x2200x152-DEG
IMPINLVR-30x2400x152-DEG
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
SERIES 25 2-ROLL IMPACT OFFSET V-RETURN 133 DIA.
PART NUMBER
BW
IMPTVR-25x600x133-DEG
600
IMPTVR-25x750x133-DEG
750
IMPTVR-25x900x133-DEG
900
IMPTVR-25x1050x133-DEG
1050
IMPTVR-25x1200x133-DEG
1200
IMPTVR-25x1350x133-DEG
1350
IMPTVR-25x1500x133-DEG
1500
IMPTVR-25x1650x133-DEG
1650
IMPTVR-25x1800x133-DEG
1800
SERIES 30
2-ROLL IMPACT OFFSET V-RETURN 152DIA.
PART NUMBER
BW
IMPTVR-30x750x152-DEG
750
IMPTVR-30x900x152-DEG
900
IMPTVR-30x1050x152-DEG
1050
IMPTVR-30x1200x152-DEG
1200
IMPTVR-30x1350x152-DEG
1350
IMPTVR-30x1500x152-DEG
1500
IMPTVR-30x1650x152-DEG
1650
IMPTVR-30x1800x152-DEG
1800
IMPTVR-30x2000x152-DEG
2000
IMPTVR-30x2100x152-DEG
2100
IMPTVR-30x2200x152-DEG
2200
IMPTVR-30x2400x152-DEG
2400
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 5 OR 10.
SERIES 25 5-ROLL TUBULAR IMPACT FRAME 133 DIA.
PART NUMBER
BW
5RTIMPOFF-25x1050x133-DEG
1050
5RTIMPOFF-25x1200x133-DEG
1200
5RTIMPOFF-25x1350x133-DEG
1350
5RTIMPOFF-25x1500x133-DEG
1500
5RTIMPOFF-25x1650x133-DEG
1650
5RTIMPOFF-25x1800x133-DEG
1800
SERIES 30
5-ROLL TUBULAR IMPACT OFFSET
152DIA.
PART NUMBER
BW
5RTIMPOFF-30x1050x152-DEG
1050
560
5RTIMPOFF-30x1200x152-DEG
1200
635
5RTIMPOFF-30x1350x152-DEG
1350
720
5RTIMPOFF-30x1500x152-DEG
1500
800
5RTIMPOFF-30x1650x152-DEG
1650
885
5RTIMPOFF-30x1800x152-DEG
1800
965
5RTIMPOFF-30x2000x152-DEG
2000
1075
5RTIMPOFF-30x2100x152-DEG
2100
1146
5RTIMPOFF-30x2200x152-DEG
2200
1185
5RTIMPOFF-30x2400x152-DEG
2400
1298
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
SERIES 25 3-ROLL TRACKING OFFSET FRAME 133 DIA.
PART NUMBER
BW
F
3RTIMPOFF-25x400x133-DEG
400
170
3RTIMPOFF-25x450x133-DEG
450
190
3RTIMPOFF-25x500x133-DEG
500
200
3RTIMPOFF-25x600x133-DEG
600
240
3RTIMPOFF-25x750x133-DEG
750
290
3RTIMPOFF-25x900x133-DEG
900
340
3RTIMPOFF-25x1050x133-DEG
1050
390
3RTIMPOFF-25x1200x133-DEG
1200
450
3RTIMPOFF-25x1350x133-DEG
1350
500
3RTIMPOFF-25x1500x133-DEG
1500
560
3RTIMPOFF-25x1650x133-DEG
1650
610
3RTIMPOFF-25x1800x133-DEG
1800
660
3RTIMPOFF-25x2000x133-DEG
2000
740
3RTIMPOFF-25x2100x133-DEG
2100
765
3RTIMPOFF-25x2200x133-DEG
2200
800
3RTIMPOFF-25x2400x133-DEG
2400
870
SERIES 25
2-ROLL TUBULAR V-RETURN
127 DIA.
PART NUMBER
BW
2RTVR-25x600x127-DEG
600
2RTVR-25x750x127-DEG
750
2RTVR-25x900x127-DEG
900
2RTVR-25x1050x127-DEG
1050
2RTVR-25x1200x127-DEG
1200
2RTVR-25x1350x127-DEG
1350
2RTVR-25x1500x127-DEG
1500
2RTVR-25x1650x127-DEG
1650
2RTVR-25x1800x127-DEG
1800
2RTVR-25x2000x127-DEG
2000
2RTVR-25x2100x127-DEG
2100
2RTVR-25x2200x127-DEG
2200
2RTVR-25x2400x127-DEG
2400
SERIES 30
2-ROLL TUBULAR V-RETURN
152DIA.
PART NUMBER
BW
2RTVR-30x750x152-DEG
750
2RTVR-30x900x152-DEG
900
2RTVR-30x1050x152-DEG
1050
2RTVR-30x1200x152-DEG
1200
2RTVR-30x1350x152-DEG
1350
2RTVR-30x1500x152-DEG
1500
2RTVR-30x1650x152-DEG
1650
2RTVR-30x1800x152-DEG
1800
2RTVR-30x2000x152-DEG
2000
2RTVR-30x2100x152-DEG
2100
2RTVR-30x2200x152-DEG
2200
2RTVR-30x2400x152-DEG
2400
SERIES 25
3-ROLL IMP.
133 DIA.
PART NUMBER
BW
3RIS-25x170x133
400
3RIS-25x190x133
450
3RIS-25x200x133
500
3RIS-25x240x133
600
3RIS-25x290x133
750
3RIS-25x340x133
900
3RIS-25x390x133
1050
3RIS-25x450x133
1200
3RIS-25x500x133
1350
3RIS-25x560x133
1500
3RIS-25x610x133
1650
3RIS-25x660x133
1800
3RIS-25x740x133
2000
3RIS-25x765x133
2100
3RIS-25x800x133
2200
3RIS-25x870x133
2400
SERIES 25
3-ROLL IMP OFFSET
133 DIA.
PART NUMBER
BW
F
3RIMPOFF-25x400x133-DEG
400
170
3RIMPOFF-25x450x133-DEG
450
190
3RIMPOFF-25x500x133-DEG
500
200
3RIMPOFF-25x600x133-DEG
600
240
3RIMPOFF-25x750x133-DEG
750
290
3RIMPOFF-25x900x133-DEG
900
340
3RIMPOFF-25x1050x133-DEG
1050
390
3RIMPOFF-25x1200x133-DEG
1200
450
3RIMPOFF-25x1350x133-DEG
1350
500
3RIMPOFF-25x1500x133-DEG
1500
560
3RIMPOFF-25x1650x133-DEG
1650
610
3RIMPOFF-25x1800x133-DEG
1800
660
SERIES 30
3-ROLL IMP OFFSET
152DIA.
PART NUMBER
BW
F
3RIMPOFF-30x750x152-DEG
750
290
3RIMPOFF-30x900x152-DEG
900
340
3RIMPOFF-30x1050x152-DEG
1050
390
3RIMPOFF-30x1200x152-DEG
1200
450
3RIMPOFF-30x1350x152-DEG
1350
500
3RIMPOFF-30x1500x152-DEG
1500
560
3RIMPOFF-30x1650x152-DEG
1650
610
3RIMPOFF-30x1800x152-DEG
1800
660
3RIMPOFF-30x2000x152-DEG
2000
740
3RIMPOFF-30x2100x152-DEG
2100
765
3RIMPOFF-30x2200x152-DEG
2200
800
3RIMPOFF-30x2400x152-DEG
2400
870
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
SERIES 30 3-ROLL TRACKING OFFSET FRAME 152 DIA.
PART NUMBER
BW
F
3RTIMPOFF-30x750x152-DEG
750
290
3RTIMPOFF-30x900x152-DEG
900
340
3RTIMPOFF-30x1050x152-DEG
1050
390
3RTIMPOFF-30x1200x152-DEG
1200
450
3RTIMPOFF-30x1350x152-DEG
1350
500
3RTIMPOFF-30x1500x152-DEG
1500
560
3RTIMPOFF-30x1650x152-DEG
1650
610
3RTIMPOFF-30x1800x152-DEG
1800
660
3RTIMPOFF-30x2000x152-DEG
2000
740
3RTIMPOFF-30x2100x152-DEG
2100
765
3RTIMPOFF-30x2200x152-DEG
2200
800
3RTIMPOFF-30x2400x152-DEG
2400
870
*OUR RUBBER DISC RANGE IS 108 DIA., 133DIA. AND 152 DIA.
**REPLACE DEG WITH THE DESIRED DEGREE OF FRAME REQUIRED 20, 35 OR 45.
**SERIES 30 FRAMES 18x30mm HOLES
INDUSTRY STANDARDS & COMPLIANCE
SANS 1313 | SANS 1173:2013 | SANS 971:2013 | SANS 968:2013 | SANS 1366:2013
COPYRIGHT @ 2026 | KANGALA CONVEYOR CC | designed by jacqueline designs
Quality comes first
COPYRIGHT @ 2026 | KANGALA CONVEYOR CC
designed by jacqueline designs
Quality comes first
